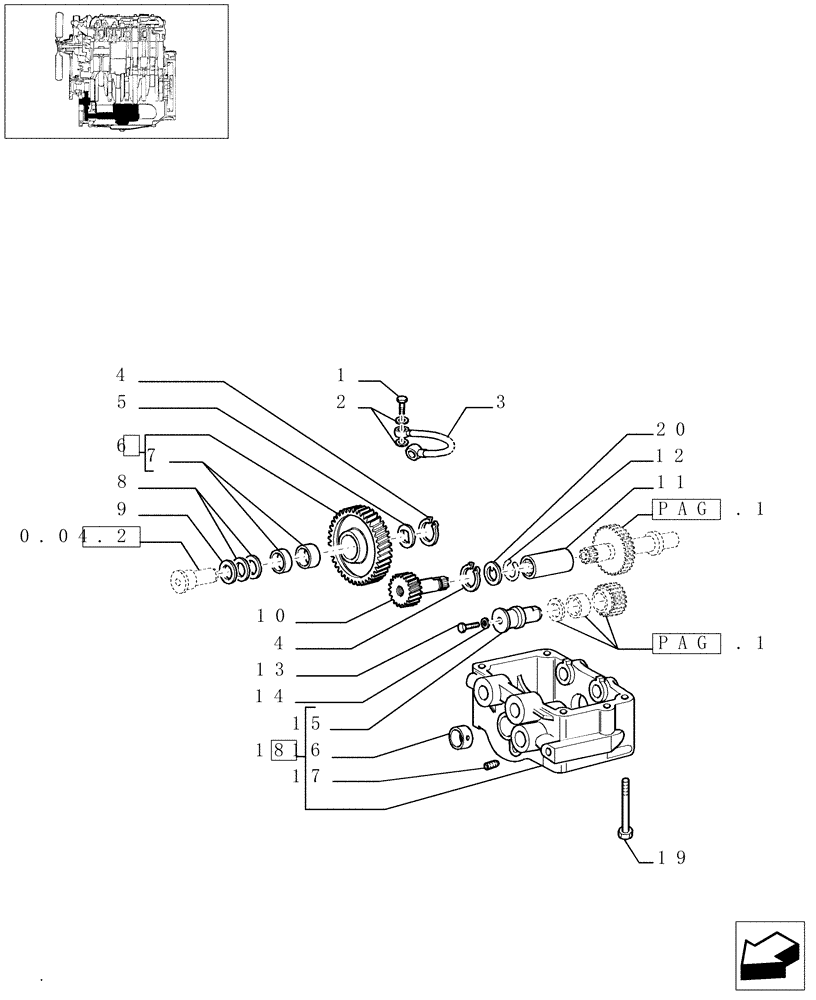

Запчасти Case IH JX1095N (0.10.5[02]) - DYNAMIC BALANCER, GEARS & SHAFTS (01) - ENGINE

1

11903817

BANJO BOLT

10 x 1.25 x 19

2шт.

2

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

D=8X12X1.5

4шт.

3

4812938

RIGID TUBE

1шт.

4

4600329

SNAP RING,29.60mm ID

2шт.

5

4667450

WASHER,32.2mm ID x 50mm OD x 3mm Thk

1шт.

6

4812932

GEAR

1шт.

7

4812465

BUSHING

2шт.

8

4834331

WASHER

2шт.

9

4600386

WASHER,32.2mm ID x 50mm OD x 3mm Thk

1шт.

10

98418381

GEAR

1шт.

11

98415087

UNIVERSAL JOINT

1шт.

12

98415095

LOCKING RING

1шт.

13

16044524

SCREW,Hex, M8 x 1.25 x 65mm, Cl 8.8

1шт.

14

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

15

4788666

PIN,30mm OD x 61.1mm L

1шт.

16

4670935

BUSHING,31.48mm ID x 36.02mm OD x 16.7mm L

1шт.

17

99434231

PLUG

M10 x 1.25

6шт.

18

98415171

HOUSING

Assy.

1шт.

19

4778867

BOLT,M12 x 1.25 x 114.50mm

M12 x 114.5

4шт.

20

4668200

THRUST WASHER

1шт.
