(1.92.85/01B[01]) - WHEAT PVC SEAT WITHOUT BELTS AND WITHOUT SWITCH - BREAKDOWN - D5644

Запчасти Case IH JX1095N (1.92.85/01B[01]) - WHEAT PVC SEAT WITHOUT BELTS AND WITHOUT SWITCH - BREAKDOWN - D5644 (10) - OPERATORS PLATFORM/CAB

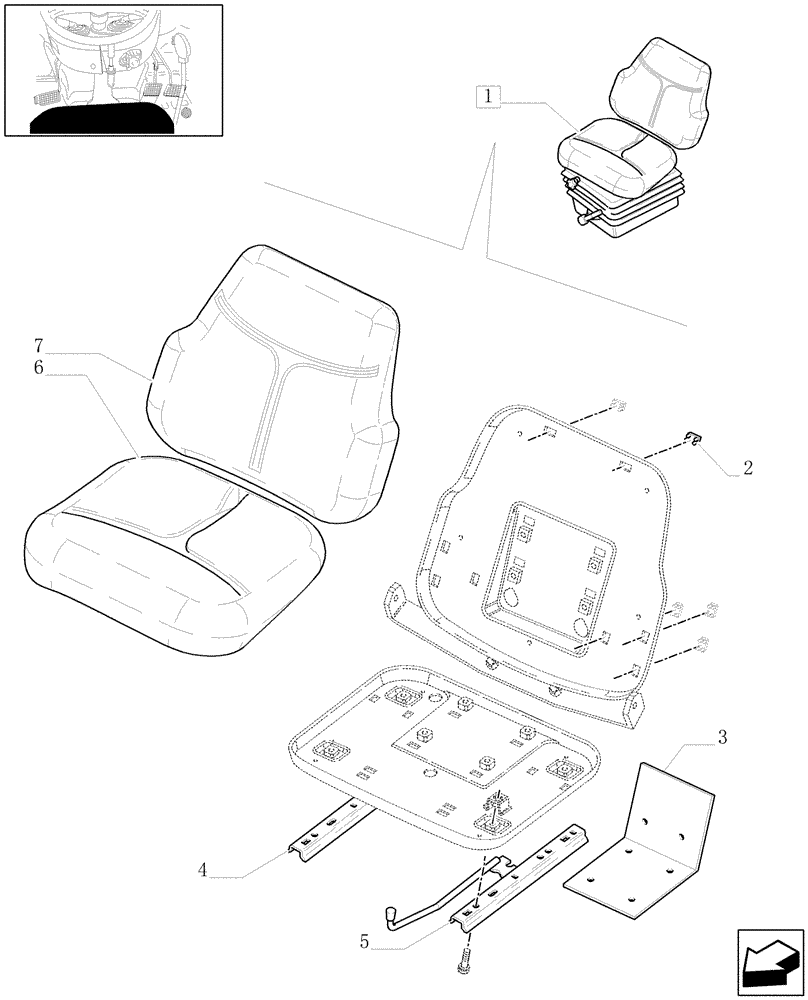

Схема запчастей Case IH JX1095N - (1.92.85/01B[01]) - WHEAT PVC SEAT WITHOUT BELTS AND WITHOUT SWITCH - BREAKDOWN - D5644 (10) - OPERATORS PLATFORM/CAB
2
7
6
4
1
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87553487

DRIVER SEAT

CASE CLOTH, L/SEAT BELT, L/SWITCH

1шт.

2

5197874

RETAINER COLLAR

8шт.

3

47130730

PLATE

1шт.

4

47136924

GUIDE

RH

1шт.

5

47130725

GUIDE

LH

1шт.

6

47132690

SEAT CUSHION

pvc, wheat

1шт.

7

47132691

SEAT BACK

pvc, wheat

1шт.
