(1.92.85/01) - WHEAT PVC SEAT WITHOUT BELTS AND WITHOUT SWITCH - W/CAB

Запчасти Case IH JX1095N (1.92.85/01) - WHEAT PVC SEAT WITHOUT BELTS AND WITHOUT SWITCH - W/CAB (10) - OPERATORS PLATFORM/CAB

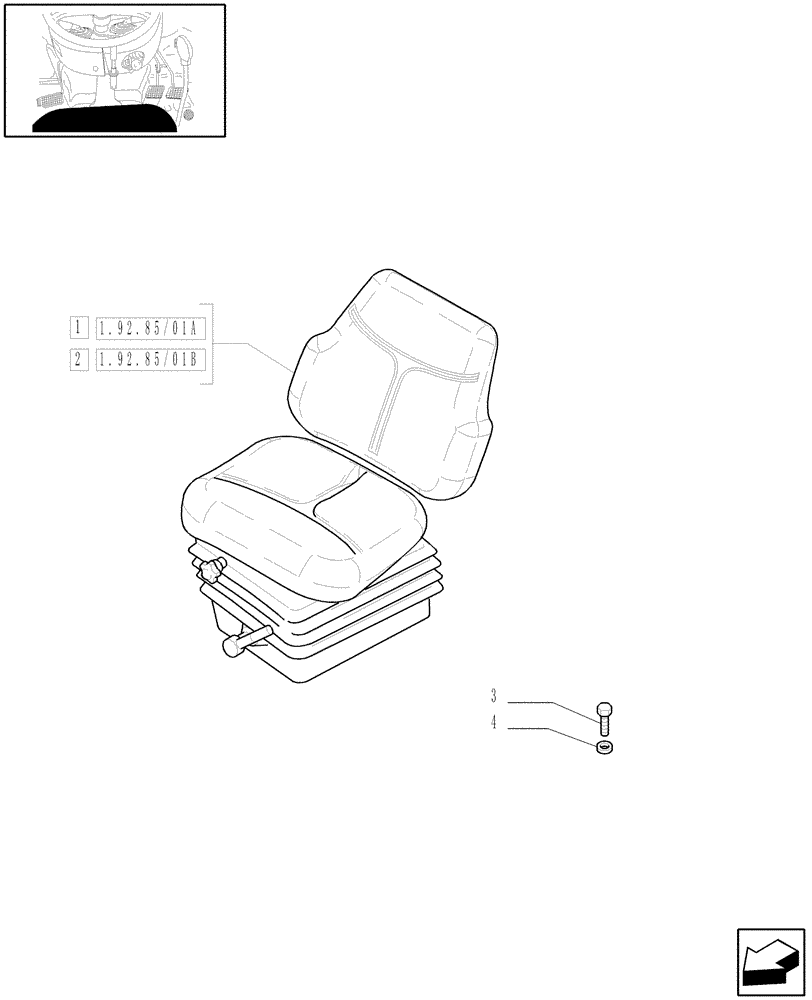

Схема запчастей Case IH JX1095N - (1.92.85/01) - WHEAT PVC SEAT WITHOUT BELTS AND WITHOUT SWITCH - W/CAB (10) - OPERATORS PLATFORM/CAB
1.92.85/01a
1
2
4
1.92.85/01b
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47132536

DRIVER SEAT

(VAR.090), Serial Range: -C5644

1шт.

2

87553487

DRIVER SEAT

ASSY, Start Serial: D5644

1шт.

3

14442027

SCREW,Flat Csk Hd, M8 x 1.25 x 20mm, Cl 8.8

VAR.090

4шт.

4

5182251

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

VAR.090

4шт.
