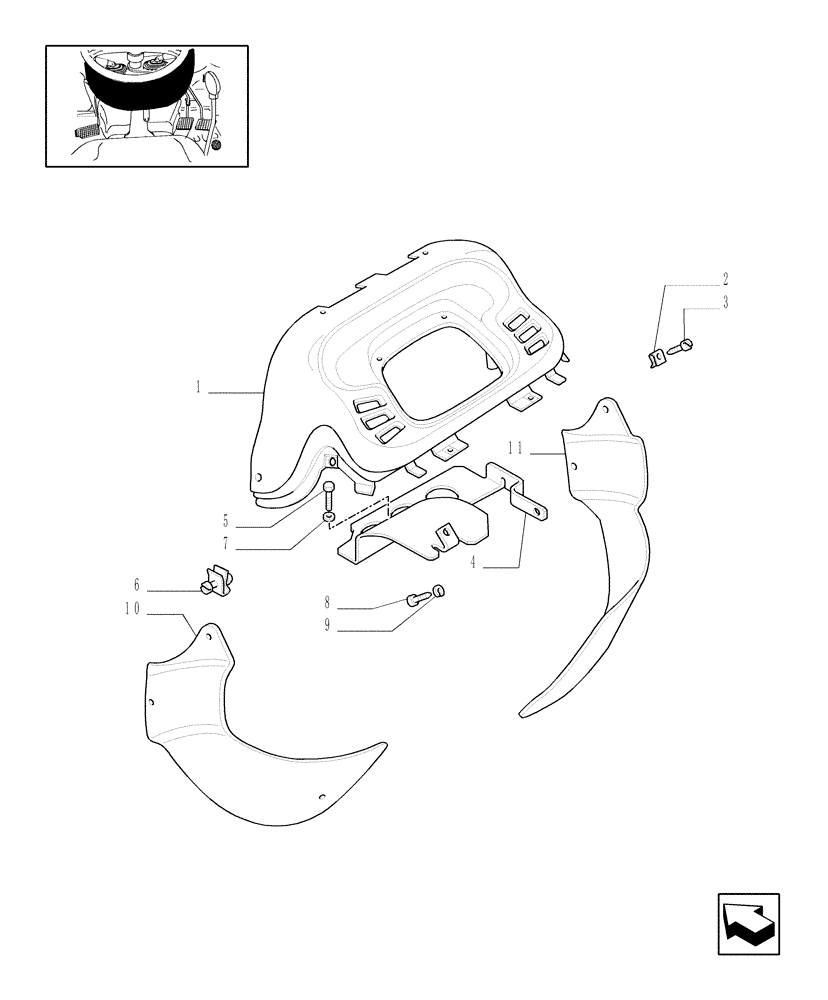

Запчасти Case IH JX1095N (1.92.83/03) - (VAR.486-541) L/REMOTE VALVES FOR MDC/EDC - FRONT CONSOLE TRIM (10) - OPERATORS PLATFORM/CAB

1

5199936

INSTRUMENT PANEL

1шт.

2

14189976

NUT,J, #6

9шт.

3

15644007

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 13mm

1шт.

3

5182249

SELF-TAP SCREW,Pan Hd, M4.2 x 1.4 x 13mm

8x13, Black

9шт.

4

5174515

BRACKET

1шт.

5

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

6

5174673

FASTENER,12mm OD

6шт.

7

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

8

5182250

SELF-TAP SCREW,Phillips Drive, Round HD, M4 x 16mm

M4x16

4шт.

9

14496204

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

D=9

4шт.

10

5175279

SIDE PANEL

LH

1шт.

11

5198444

SIDE PANEL

RH

1шт.
