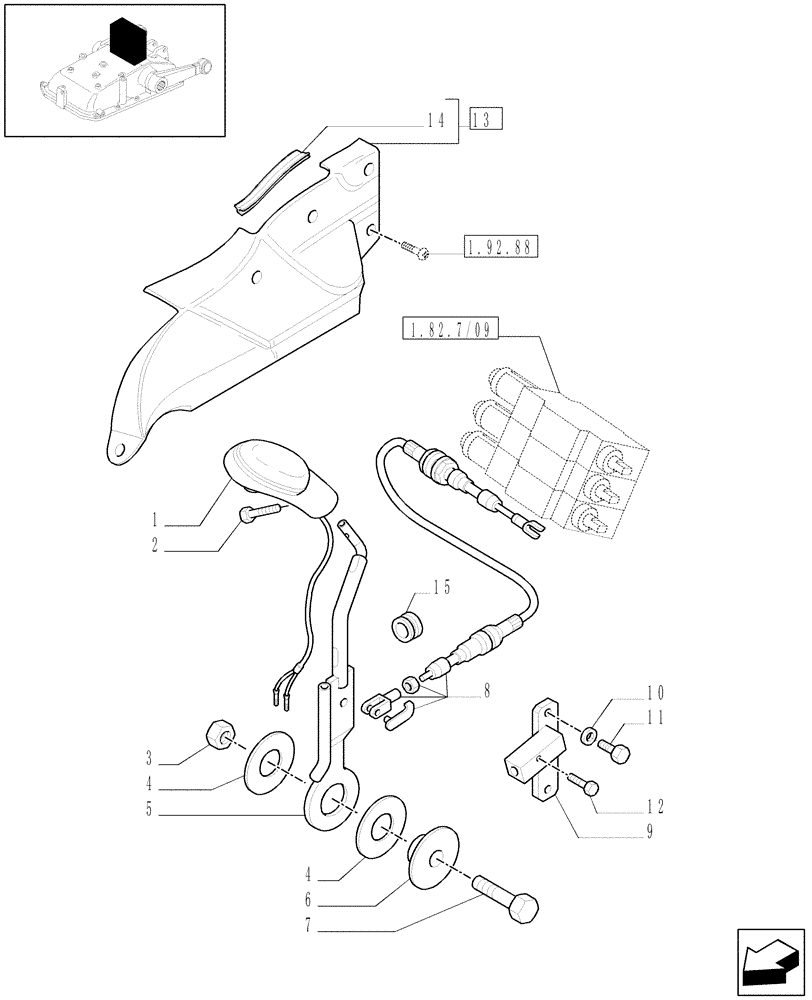

Запчасти Case IH JX1095N (1.92.82/06[02]) - (VAR.088) 3 REAR REMOTE VALVES - CONTROL LEVER (10) - OPERATORS PLATFORM/CAB

1

47132377

KNOB

Green

1шт.

2

13309177

SCREW,Pozidriv Oval Hd, Csk, M4 x 14mm, Full Thd

1шт.

3

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

1шт.

4

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

2шт.

5

47132375

LEVER

Incl. 1, 2, L/CAB

1шт.

5

47135763

LEVER

Incl. 1, 2, W/CAB

1шт.

6

47126539

SPACER,8.5mm ID x 50mm OD x 11mm L

1шт.

7

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

8

5199202

CABLE,645mm L

L=645MM, 3RD Remote

1шт.

(JX1095V) W/CAB

1шт.

8

5195173

CABLE

L=675MM, 3RD Remote

1шт.

(JX1095V) L/CAB, JX1095N

1шт.

9

5188363

BLOCK

1шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

11

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

2шт.

12

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

1шт.

13

5190244

GUARD

L/CAB

1шт.

13

5190235

GUARD

W/CAB

1шт.

14

44914718

GASKET

L=322MM, L/CAB

1шт.

15

10397580

INSULATING RING,16mm ID x 22mm Groove D x 29mm OD

16x2.5, W/CAB

1шт.
