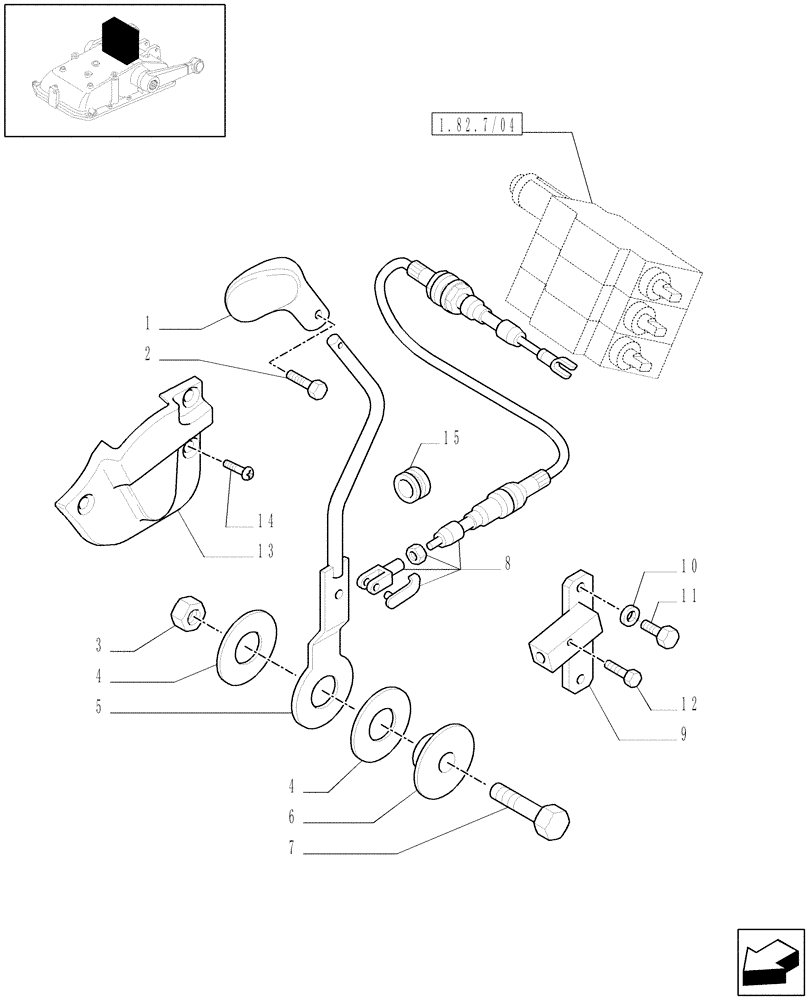

Запчасти Case IH JX1095N (1.92.82/04) - (VAR.419) THREE REMOTE VALVES FOR ELECTRONIC LIFT - CONTROL LEVER (10) - OPERATORS PLATFORM/CAB

1

82026097

KNOB

1шт.

2

13309177

SCREW,Pozidriv Oval Hd, Csk, M4 x 14mm, Full Thd

3шт.

3

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

1шт.

4

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

2шт.

5

5190435

LEVER

W/CAB

1шт.

6

47126539

SPACER,8.5mm ID x 50mm OD x 11mm L

1шт.

7

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

8

5199202

CABLE,645mm L

L=645MM., JX1095V

1шт.

8

5195173

CABLE

L=675MM., JX1095N

1шт.

9

5188363

BLOCK

1шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

11

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

2шт.

12

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

1шт.

13

5190237

GUARD

W/EDC

1шт.

14

13279314

SCREW,Pozidriv Pan Hd, M8 x 18mm

W/EDC

3шт.

15

10397580

INSULATING RING,16mm ID x 22mm Groove D x 29mm OD

16x2.5 W/Cab

1шт.
