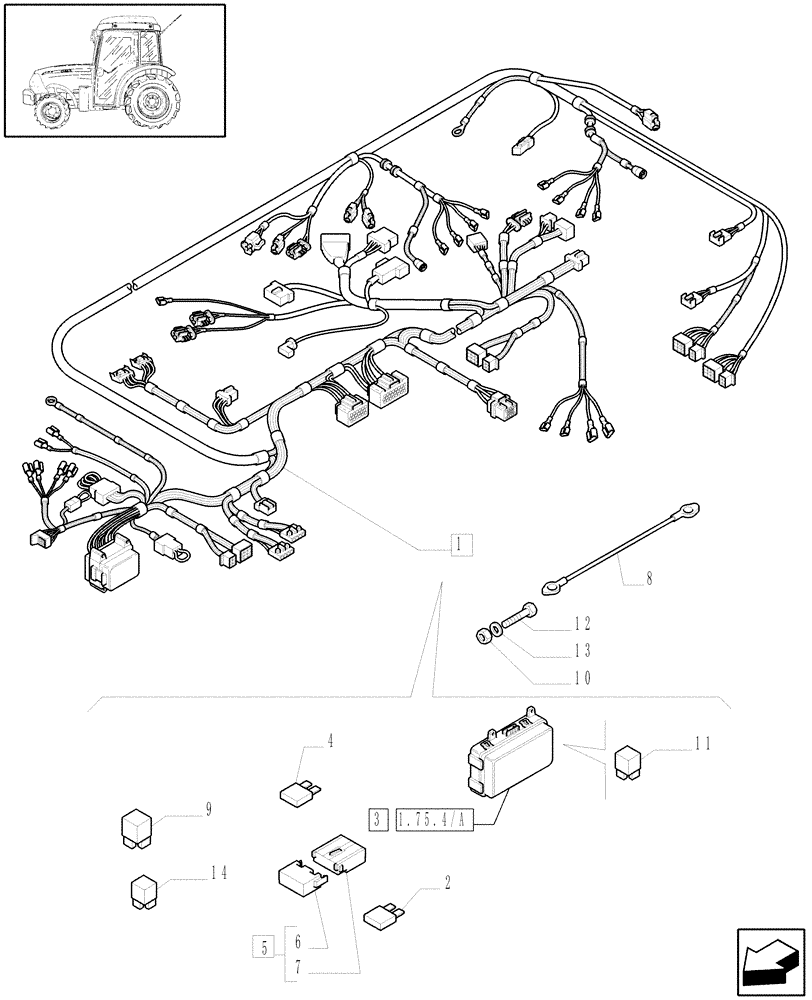

Запчасти Case IH JX1095N (1.92.754[01]) - (VAR.821-832) ELECTRONIC LIFT (OPEN CENTER) - MAIN HARNESS ASSEMBLY (10) - OPERATORS PLATFORM/CAB

1

47130347

ELECTRIC CABLE

, Serial Range: -HJC049702

1шт.

1

87313028

ELECTRIC CABLE

, Serial Range: HJC049703-C5294

1шт.

1

87398057

ELECTRIC CABLE

, Start Serial: D5294

1шт.

2

10395890

FUSE,5A, Mini, Beige

5A

8шт.

2

87522597

FUSE,10A, Mini, Red

10A

7шт.

2

87524877

FUSE,15A, Mini, Blue

15A

5шт.

2

10401290

FUSE,25 amp Mini

25A

1шт.

3

5198692

FUSE HOLDER

16 Way

1шт.

4

5173263

FUSE,50A, Maxi, Red

50A

1шт.

5

5176999

COVER

3шт.

6

5173265

COVER

1шт.

7

5173266

FUSE HOLDER

1шт.

8

5191227

ELECTRIC CABLE

Ground, Serial Range: -HJC075427

1шт.

8

87570576

ELECTRIC CABLE

, Start Serial: HJC075428

1шт.

9

5171083

RELAY,12V, 20A, N.O.

12V-20A

1шт.

9

5171084

RELAY,12V, 20A, N.C.

12V-20A

1шт.

10

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

11

83989947

RELAY,70A

70A

1шт.

12

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

4шт.

13

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

13

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

1шт.

13

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

DIA=6

4шт.

14

5173264

FUSE,30A, Maxi, Green

30A

1шт.
