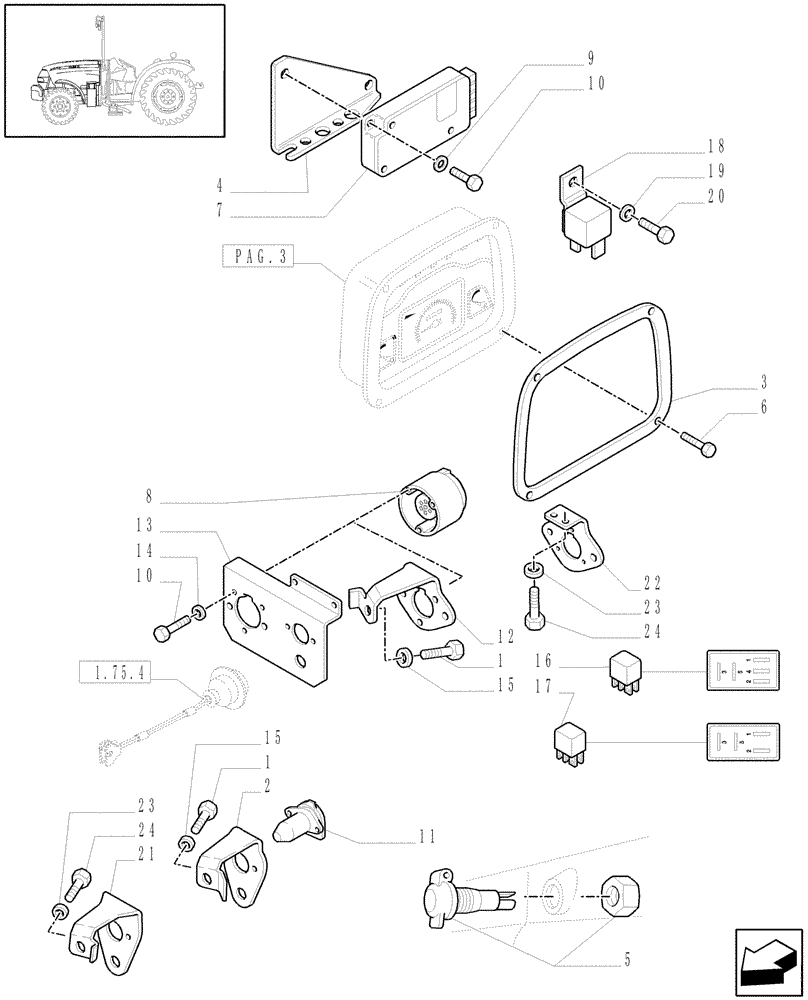

Запчасти Case IH JX1095N (1.92.75[01]) - ELECTRIC CONTROLS (10) - OPERATORS PLATFORM/CAB

1

15013424

BOLT,Hex, M16 x 25mm, Full Thd

w/Cab, Serial Range: -HJC075618

2шт.

2

5189393

BRACKET

W/Cab, Serial Range: -HJC075618

1шт.

3

5175371

GASKET,3mm Thk

1шт.

4

5174470

BRACKET

4WD, W/Cab, JX1095N

1шт.

5

82002966

POWER SOCKET,M18 x 1

4WD, W/Cab

1шт.

6

5180363

HEX SOC SCREW,M4 x 0.7 x 25mm, Cl 8.8

4шт.

7

87303217

ECU

4WD, W/Cab, JX1095N

3шт.

87316119R

REMAN ELECT CONTROL

JX1095N (12/04-), Reman for New P/N 87303217

3шт.

87316119C

CORE-ELECTRONIC CONT

Return Number

1шт.

8

5102156

MULTIPOLE CONNECTOR,Female, 7 Pole

12V

1шт.

9

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

3шт.

10

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

3шт.

10

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

11

5170243

POWER SOCKET,25A

25A ISO

1шт.

12

5188796

BRACKET

W/Cab, Serial Range: -HJC075618

1шт.

13

5189394

BRACKET

L/Cab

2шт.

14

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

L/Cab

2шт.

15

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

W/Cab, Serial Range: -HJC075618

1шт.

16

5171084

RELAY,12V, 20A, N.C.

12V-20A

1шт.

17

5171083

RELAY,12V, 20A, N.O.

12V-20A

1шт.

18

82012872

RELAY,70A

4WD, W/Cab

1шт.

19

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

4WD, W/Cab

1шт.

20

13273924

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

4WD, W/Cab

1шт.

21

87564782

BRACKET

, Start Serial: HJC075619

1шт.

22

87556174

BRACKET

, Start Serial: HJC075619

1шт.

23

11194371

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.4mm Thk

, Start Serial: HJC075619

2шт.

24

10902114

BOLT,Hex, M6 x 14mm, Cl 5.8, Full Thd

, Start Serial: HJC075619

2шт.
