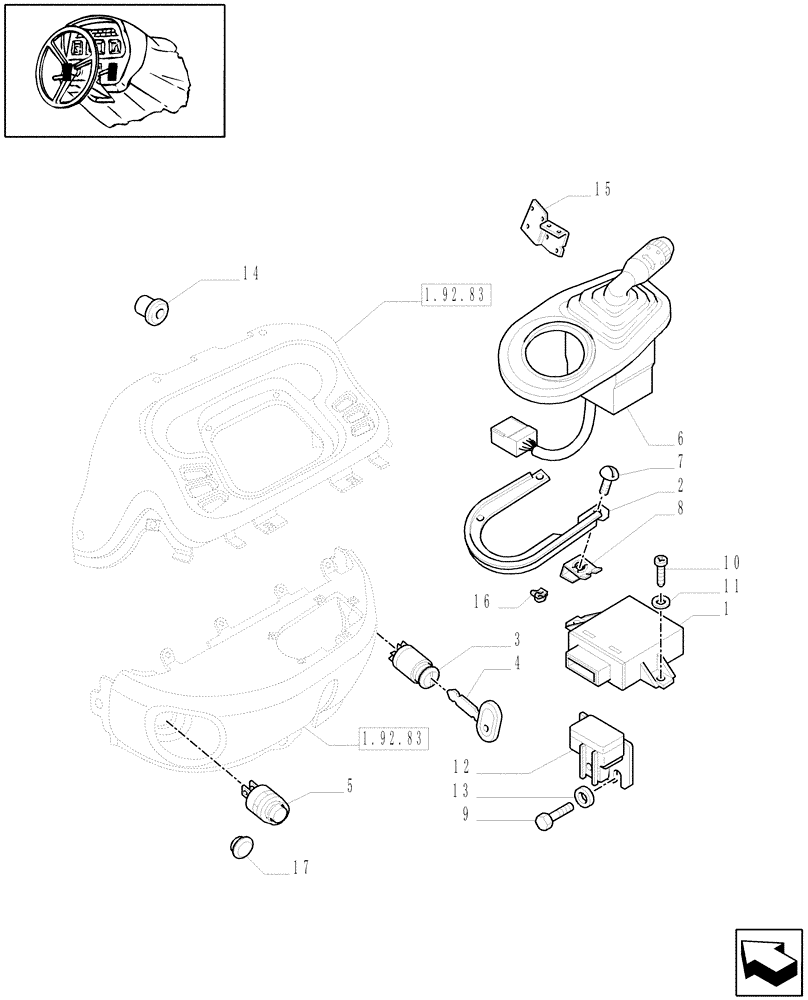

Запчасти Case IH JX1095N (1.92.74[01]) - ELECTRIC CONTROLS (10) - OPERATORS PLATFORM/CAB

1

82022809

FLASHER UNIT

TURN INDICATOR

1шт.

2

5173820

RUBBER STRIP

1шт.

3

5179952

IGNITION SWITCH

1шт.

4

5170782

IGNITION KEY

Black

2шт.

5

5127282

SWITCH

1шт.

6

87677191

LIGHT SWITCH

1шт.

Lights Control Switch

1шт.

7

15663301

SELF-TAP SCREW,Cross Oval Hd, M4.2 x 19mm

3шт.

8

5175702

NUT

, Serial Range: -C5348

5шт.

9

80044334

SCREW

M4x12

2шт.

10

13273924

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

2шт.

11

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

2шт.

12

47130085

SENSOR

4WD, JX1095N

1шт.

13

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

14

5183270

PLUG

1шт.

15

5186379

BRACKET

1шт.

16

14372671

SPRING NUT,M4.2, U, 12.4mm long

, Start Serial: D5348

5шт.

17

5154178

PLUG,22mm

1шт.
