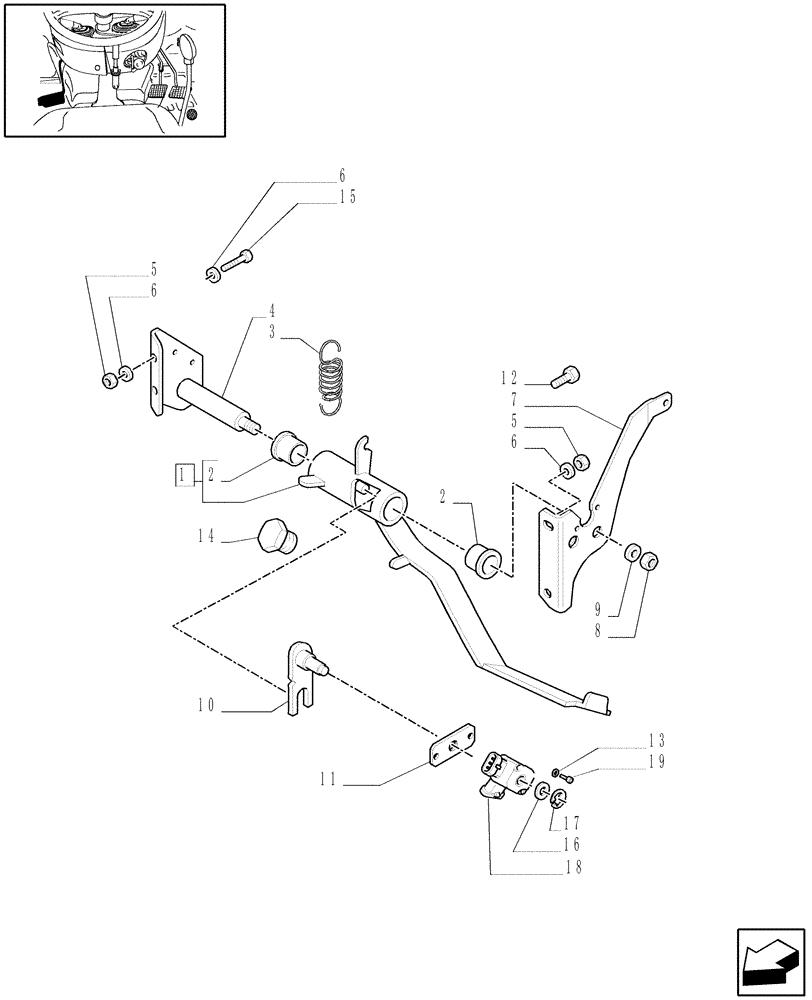

Запчасти Case IH JX1095N (1.92.26/02) - (VAR.297) HI-LO NA - CLUTCH CONTROL, PEDAL AND SUPPORTS (10) - OPERATORS PLATFORM/CAB

1

5172902

PEDAL

ASSY

1шт.

2

5188075

BUSHING,22mm ID x 26.27mm OD x 26mm L

2шт.

3

5177552

SPRING,51mm OD x 64mm L

1шт.

4

47130713

SUPPORT

RH

1шт.

5

43362

NUT,M8 x 1.25, Cl 10

4шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

7

47130711

SUPPORT

LH

1шт.

8

16101524

NUT,M12 x 1.25, Cl 10

1шт.

9

11190879

BELLEVILLE WASHER,M12 Bolt Size x 30mm OD

1шт.

10

47132765

SHAFT,39.55mm L

1шт.

11

47133571

PLATE

1шт.

12

13030421

HEX SOC SCREW,M10 x 1.25 x 22mm, Cl 8.8, Full Thd

M10x22

1шт.

13

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

2шт.

14

5179011

PLUG,Hex, M32 x 2

4x9

2шт.

15

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

16

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

17

87016950

SNAP RING,M7, Ext

1шт.

18

87543715

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor, Serial Range: -C5735

1шт.

18

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor, Start Serial: D5735

1шт.

19

14358721

HEX SOC SCREW,M5 x 35mm, Cl 8.8

2шт.
