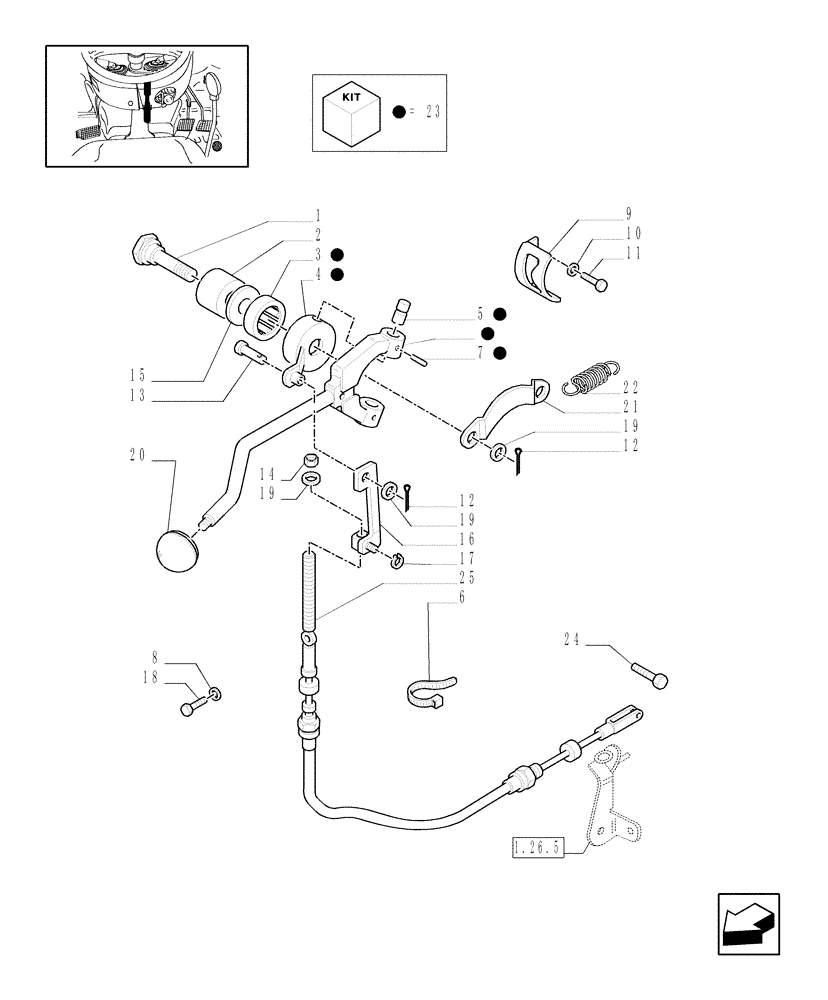

Запчасти Case IH JX1095N (1.92.26[02]) - PTO CONTROL (10) - OPERATORS PLATFORM/CAB

1

5191524

HEX SOC SCREW,M8 x 19.1mm, Cl 10.9

M8

1шт.

2

5191525

LEVER

1шт.

3

5188063

NEEDLE BEARING CAGE,Needle, 20mm ID x 26mm OD x 16mm W

1шт.

4

5186046

HUB

1шт.

5

5188051

PIN,5mm OD x 17mm L

5x17

2шт.

6

14560187

COLLAR,199mm L

L=203.2mm

2шт.

7

14158470

LOCK PIN,M2 x 10, Slotted

2шт.

8

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

9

5193701

SECTOR

TOOTHED SECTOR

1шт.

10

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

2шт.

11

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

12

10796301

COTTER PIN,M3.2 x 12

2шт.

13

5192529

PIN,6mm OD x 21.5mm L

1шт.

14

12574211

NUT,M6 x 1, Cl 8

1шт.

15

5191527

ANTI-WRAP PLATE

1шт.

16

5191764

BRACKET

1шт.

17

87016950

SNAP RING,M7, Ext

1шт.

18

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

19

12648201

WASHER,6.15mm ID x 10mm OD x 1mm Thk

1шт.

20

5171717

KNOB

1шт.

21

5186050

SPRING

1шт.

22

5186034

SPRING,33.5mm OD x 68.5mm L

1шт.

23

5193705

LEVER

Assy.

1шт.

24

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

1шт.

25

5190246

CABLE

1шт.
