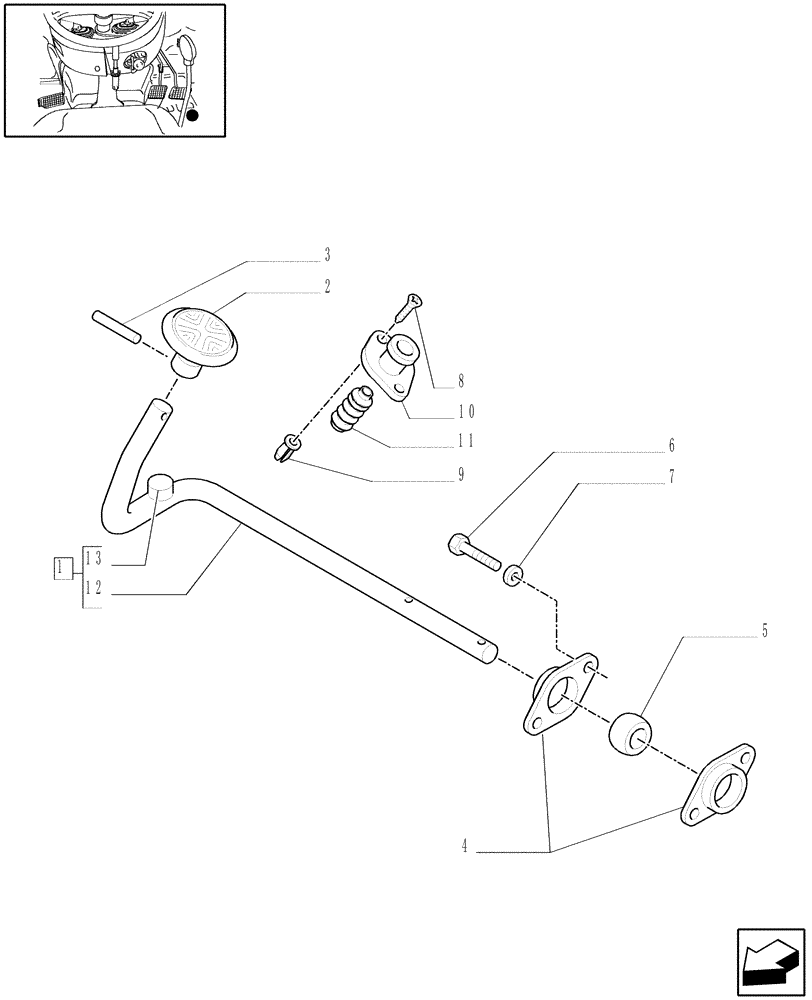

Запчасти Case IH JX1095N (1.92.10[01]) - THROTTLE CONTROL LINKAGE (10) - OPERATORS PLATFORM/CAB

1

84122148

LEVER

1шт.

2

5111800

PEDAL

Black

1шт.

2

87325567

PEDAL

Orange

1шт.

3

13938070

ROLL PIN,M4 x 24mm OAL, Coiled

1шт.

4

5156494

FLANGE

2шт.

5

5176160

BUSHING

1шт.

6

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

7

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

2шт.

8

5182260

SELF-TAP SCREW,M5 x 16mm L

5x16, W/Cab

2шт.

9

14115781

GROMMET

W/Cab

2шт.

10

5181227

CIRCLIP

W/Cab

1шт.

11

5128714

BOOT

W/Cab

1шт.

12

84122202

LEVER

1шт.

13

5115768

STOP

1шт.
