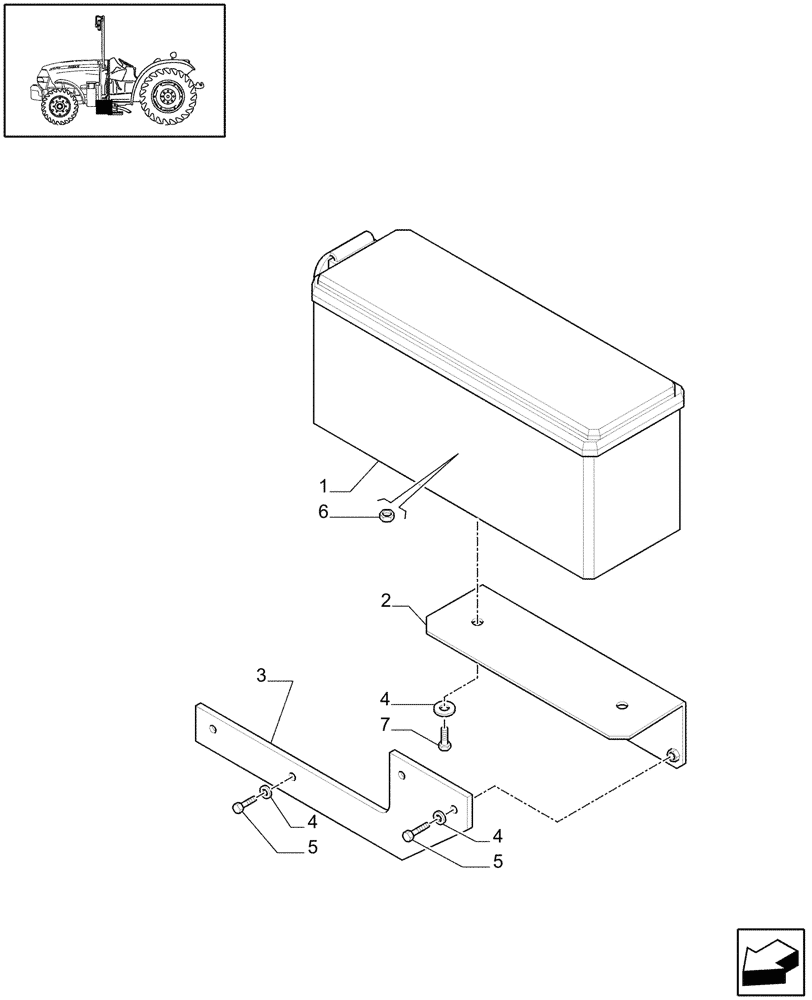

Запчасти Case IH JX1095N (1.90.5) - TOOL BOX (10) - OPERATORS PLATFORM/CAB

1

5159732

TOOL BOX

Assy.

1шт.

2

5190553

PLATE

1шт.

3

5190555

BRACKET

1шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

4

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

5

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

6

43362

NUT,M8 x 1.25, Cl 10

2шт.

7

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.
