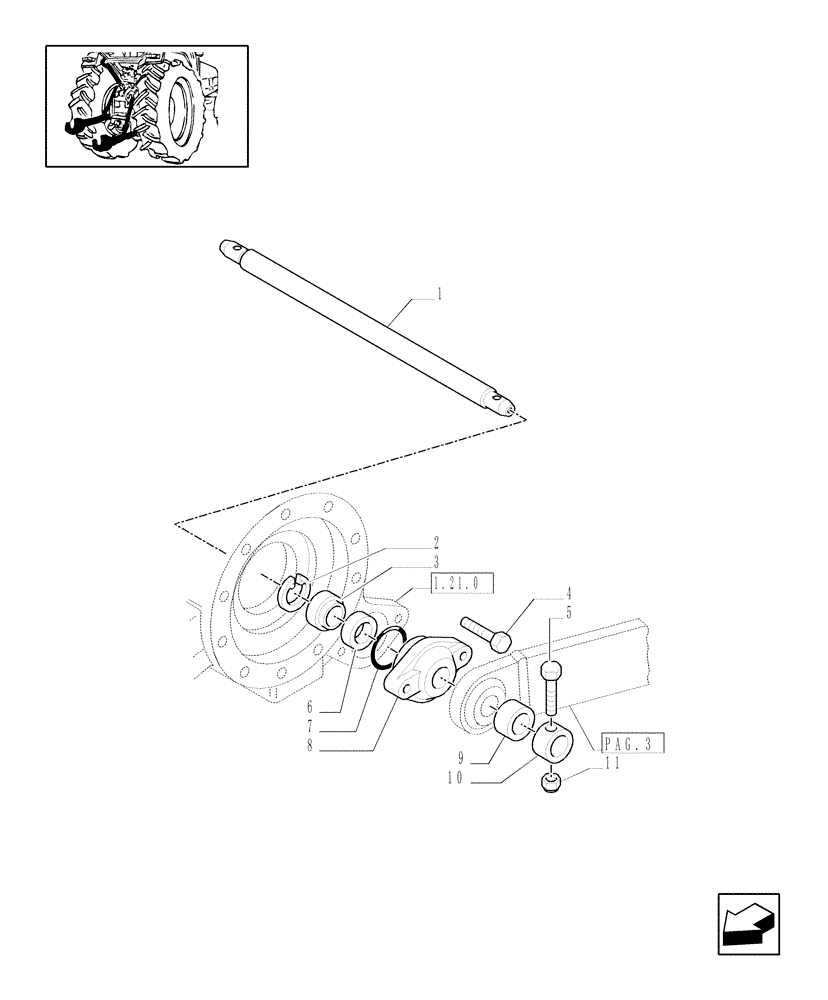

Запчасти Case IH JX1095N (1.89.6[02]) - IMPLEMENT CARRIER (09) - IMPLEMENT LIFT

1

5180482

BAR

1шт.

2

13421876

CIRCLIP,42mm ID x 45 OD

2шт.

3

5116244

BUSHING,25mm ID x 25mm OD x 20mm L

2шт.

4

15540724

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8

4шт.

5

15888724

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

2шт.

6

47129342

SEAL,23.1mm ID x 37mm OD x 12.3mm Thk

2шт.

7

14459781

O-RING,55.24mm ID x 60.479mm OD x 2.62mm Thk

2шт.

8

5174686

SUPPORT

2шт.

9

5131391

SPACER,25.5mm ID x 38mm OD x 15mm L

2шт.

10

5116247

RING,24mm ID x 38.4mm OD x 25mm L

2шт.

11

12574511

LOCK NUT,M10 x 1.25, Cl 8

2шт.
