(1.89.4) - (VAR.895/1) SUPPORT FOR TRAILER BRAKE CONTROL LEVER (ITALY) - L/CAB

Запчасти Case IH JX1095N (1.89.4) - (VAR.895/1) SUPPORT FOR TRAILER BRAKE CONTROL LEVER (ITALY) - L/CAB (09) - IMPLEMENT LIFT

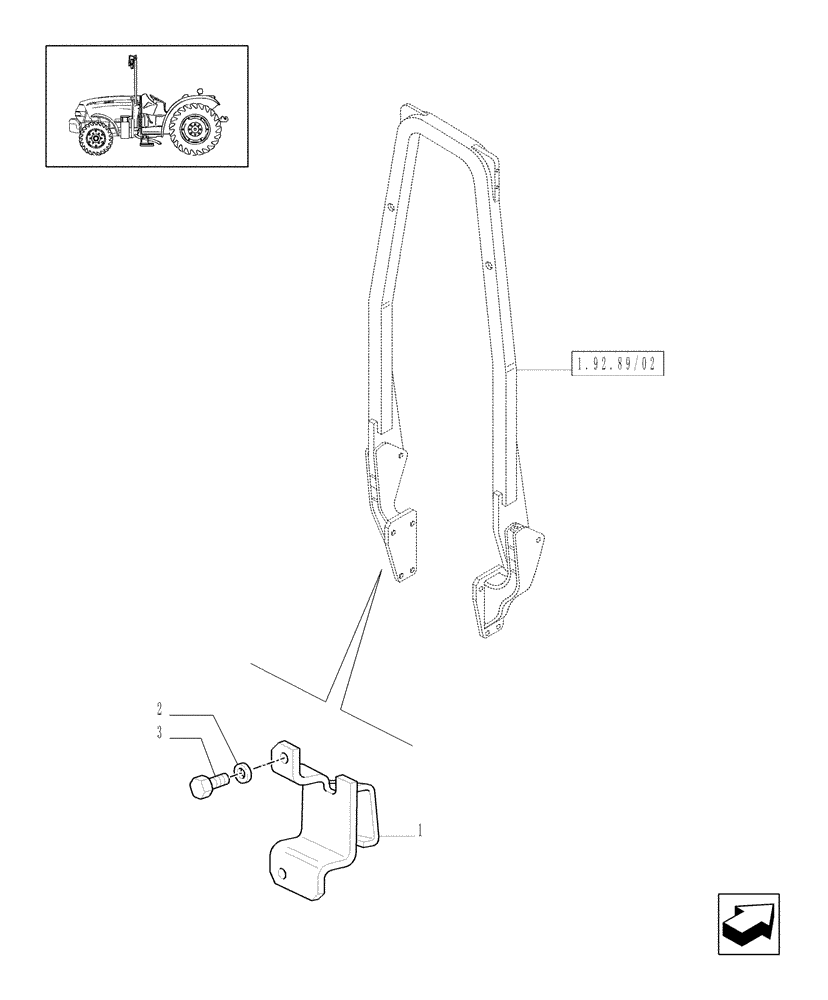

Схема запчастей Case IH JX1095N - (1.89.4) - (VAR.895/1) SUPPORT FOR TRAILER BRAKE CONTROL LEVER (ITALY) - L/CAB (09) - IMPLEMENT LIFT
2
1
1.92.89/02
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47127667

BRACKET

1шт.

2

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

3

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
