Запчасти Case IH JX1095N (1.89.0/03[02]) - (VAR.896) SUPPORT AND DRAWBAR CATEGORY "A" TOW HOOK 33MM WITH END PIECES (09) - IMPLEMENT LIFT

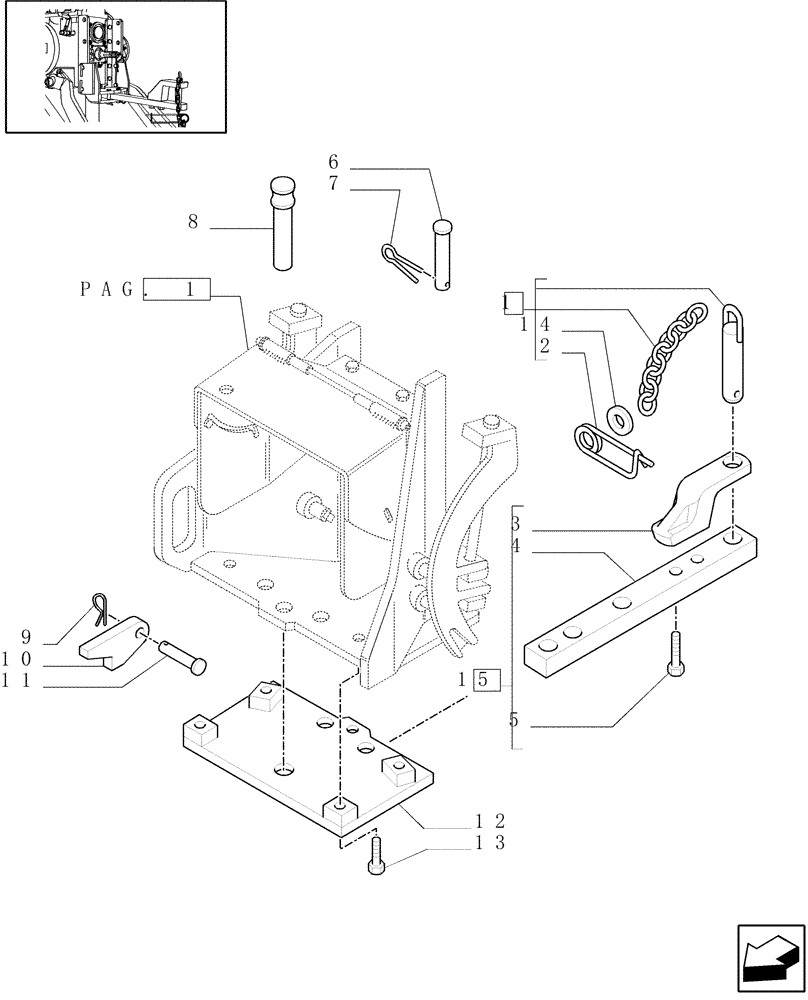

Схема запчастей Case IH JX1095N - (1.89.0/03[02]) - (VAR.896) SUPPORT AND DRAWBAR CATEGORY "A" TOW HOOK 33MM WITH END PIECES (09) - IMPLEMENT LIFT
1
3
4
11
6
7
5
14
9
15
pag. 1
13
12
2
10
8

Артикул

Название

Примечание

Количество

1

5163732

PIN,32mm OD x 182mm L

Assy., Incl. Ref. 2, 14

1шт.

2

5152004

HAIR PIN COTTER,195mm L

1шт.

3

5151269

CLEVIS,220mm L x 110mm W x 30mm Thk, 80mm Offset

1шт.

4

5186156

DRAWBAR,589mm L x 60mm W x 35mm Thk

1шт.

5

15984637

BOLT,Hex, M18 x 1.5 x 70mm, Cl 10.9

2шт.

6

5187029

PIN,18mm OD x 92mm L

81MM

2шт.

7

5112606

COTTER PIN,2.5mm OD x 66.5mm L

2шт.

8

5186858

PIN,22mm OD x 114mm L

1шт.

9

10796401

COTTER PIN,M3.2 x 18

1шт.

10

5130621

LEVER

1шт.

11

5130620

PIN,10mm OD x 34mm L

1шт.

12

5186155

SUPPORT

1шт.

13

15981324

BOLT,Hex, M16 x 1.5 x 75mm, Cl 8.8

4шт.

14

44901192

SNAP RING,25mm ID

1шт.

15

5190747

DRAWBAR

Assy., Incl. Ref. 3, 4, 5

1шт.

Выбрано товаров: 15
