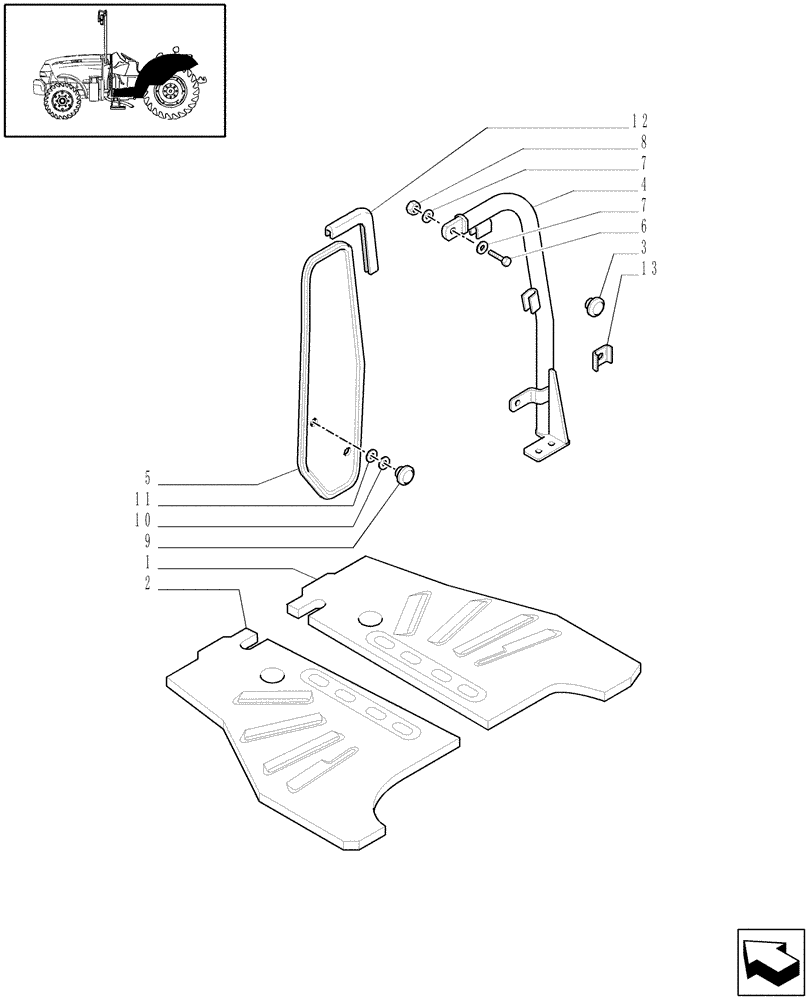

Запчасти Case IH JX1095N (1.87.0/06[04]) - (VAR.101) NOISE REDUCTION PACKAGE - MUDGUARDS AND FOOTBOARDS - L/CAB (08) - SHEET METAL

1

5188815

TRIM PANEL

RH JX1095V

1шт.

1

5188817

MAT

RH JX1095N

1шт.

1

47135276

MAT

RH (Low Mudguards) JX1095V

1шт.

1

47135278

MAT

RH (Low Mudguards) JX1095N

1шт.

2

5188816

TRIM PANEL

LH JX1095V

1шт.

2

5188818

MAT

LH JX1095N

1шт.

2

47135277

MAT

LH (Low Mudguards) JX1095V

1шт.

2

47135279

MAT

LH (Low Mudguards) JX1095N

1шт.

3

5175968

PLUG,Cap locking hole

1шт.

4

47126810

HANDRAIL

RH

1шт.

4

47126811

HANDRAIL

LH

1шт.

5

47126813

MIRROR, ATTACHMENT

1шт.

6

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

8шт.

8

43362

NUT,M8 x 1.25, Cl 10

2шт.

9

5120540

KNOB

4шт.

10

5124800

SEALING RING,20mm ID x 36mm OD x 5mm Thk

SEALRING

4шт.

11

12625224

LOCK WASHER,8.15mm ID x 20mm OD x 1mm Thk

DIA=8

4шт.

12

47126860

GASKET

1шт.

13

5113395

SEAL, GLASS,Window, 30mm L

4шт.
