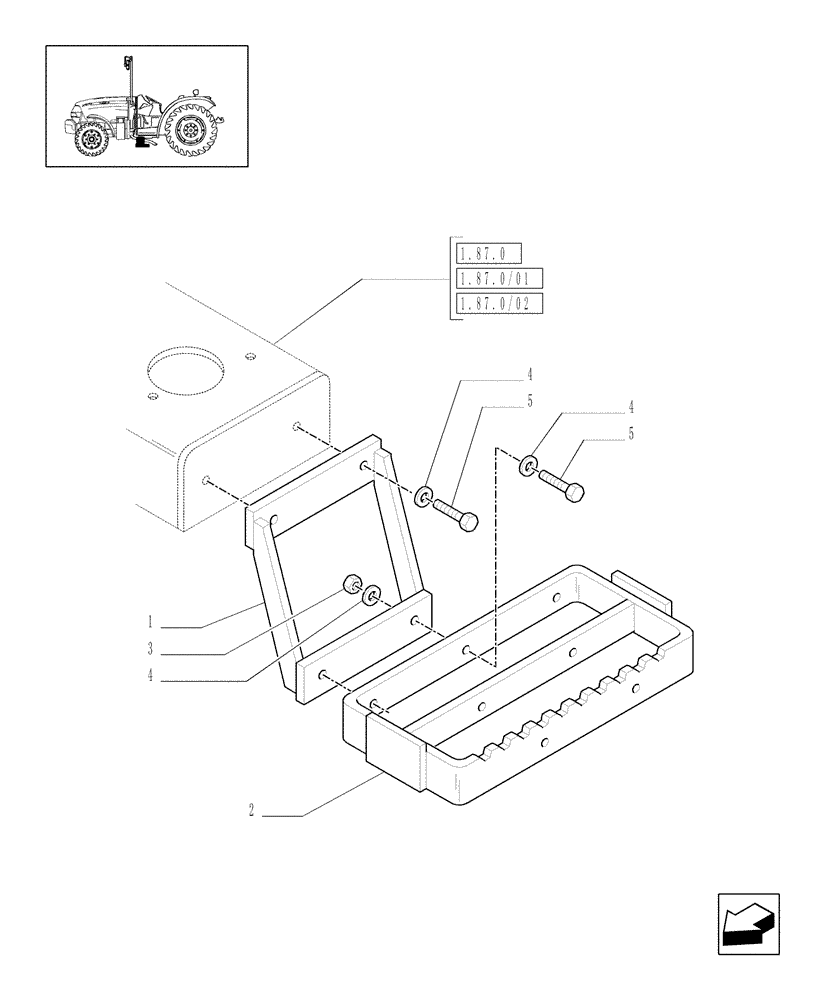

Запчасти Case IH JX1095N (1.87.0/05) - (VAR.664) LADDER (08) - SHEET METAL

1

5177298

SPACER

2шт.

2

5185610

FOOTREST

2шт.

3

43362

NUT,M8 x 1.25, Cl 10

4шт.

4

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

8шт.

5

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

5

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.
