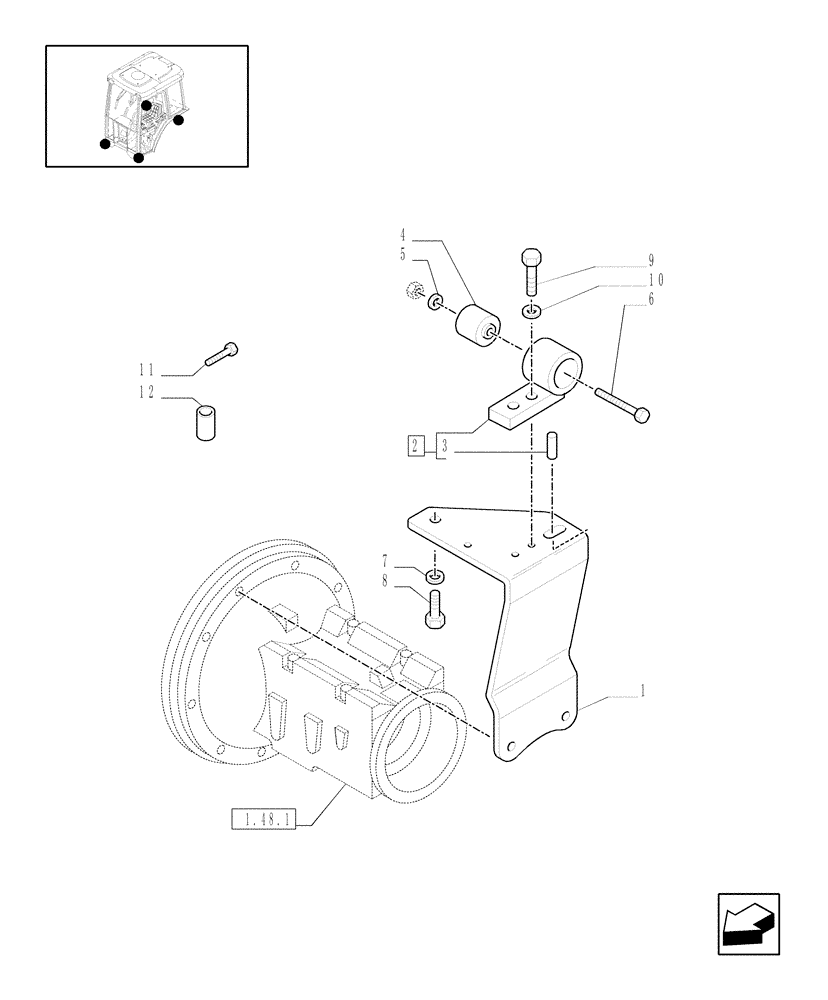

Запчасти Case IH JX1095N (1.87.0/02[01]) - CAB - CAB SUPPORTS (08) - SHEET METAL

1

5187808

PLATE

LH

1шт.

1

5187810

PLATE

RH

1шт.

2

5187631

3 POINT HITCH

2шт.

3

5110200

DOWEL,12mm OD x 25mm L

M12 x 25

2шт.

4

5177337

RUBBER BUSHING,50mm ID x 64mm OD x 52mm L

2шт.

5

11191174

LOCK WASHER

14x27

2шт.

6

15977934

SCREW,Hex, M14 x 1.5 x 90mm, Cl 10.9

2шт.

7

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

8

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

2шт.

9

11422030

BOLT,Hex, M14 x 1.5 x 55, 10.9

4шт.

10

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

4шт.

11

13797721

SET SCREW,Hex Skt, M6 x 8mm, Cone Pt

2шт.

12

5137163

SPACER,17mm ID x 24mm OD x 60mm L

17x24x60

2шт.
