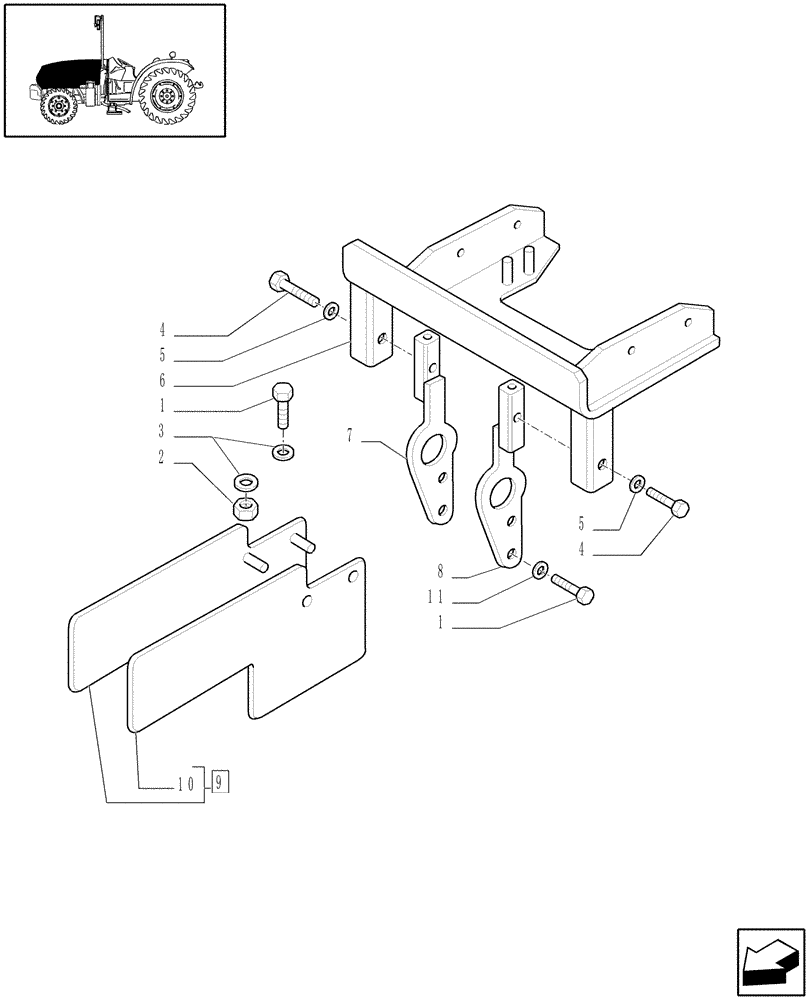

Запчасти Case IH JX1095N (1.83.0/01[02]) - (VAR.101) NOISE REDUCTION PACKAGE - UPPER HOOD AND LEVERS (08) - SHEET METAL

1

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

2

43362

NUT,M8 x 1.25, Cl 10

2шт.

3

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

4

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

4шт.

5

10569374

LOCK WASHER,M8

4шт.

6

5197230

SUPPORT

1шт.

7

5188590

BRACKET

RH

1шт.

8

5188591

BRACKET

LH

1шт.

9

5191258

BRACKET

1шт.

10

5191255

BRACKET

1шт.

11

10516874

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

M10

2шт.
