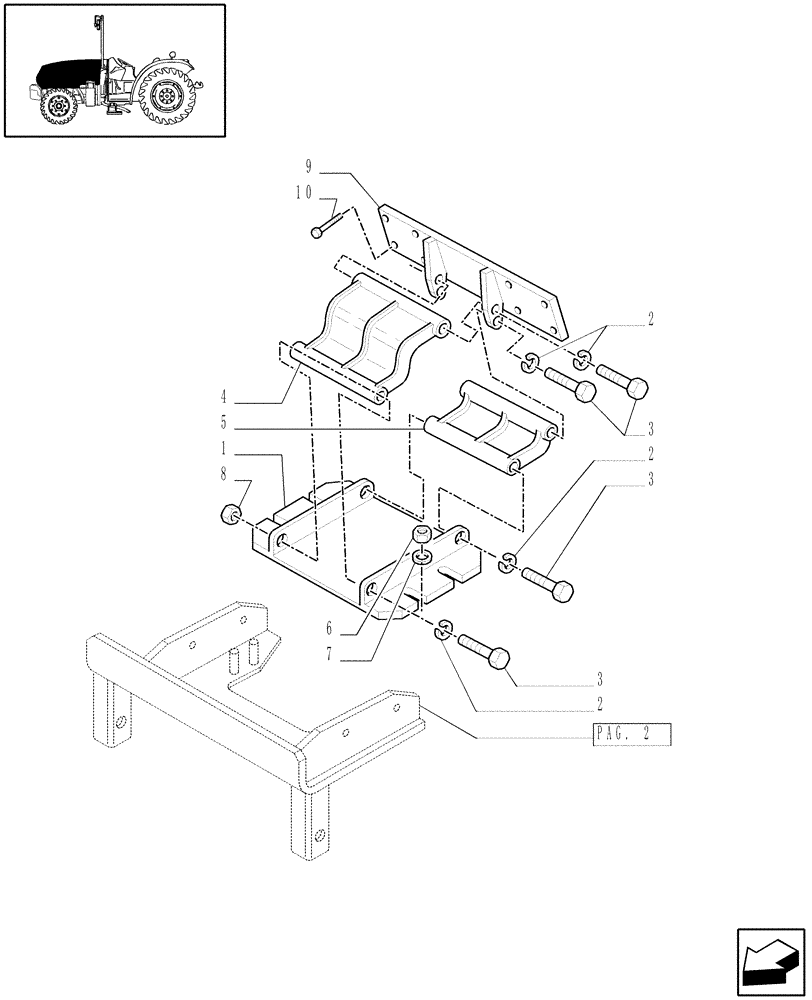

Запчасти Case IH JX1095N (1.83.0/01[01]) - (VAR.101) NOISE REDUCTION PACKAGE - UPPER HOOD (08) - SHEET METAL

1

5191254

HINGE

1шт.

2

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

4шт.

3

16045830

SCREW,M8

M8x120

4шт.

4

5191262

ARM

1шт.

5

5191261

ARM

1шт.

6

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

7

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

8

16104121

NUT,M8 x 1.25, Cl 10

4шт.

9

5191251

SUPPORT

1шт.

10

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

8шт.
