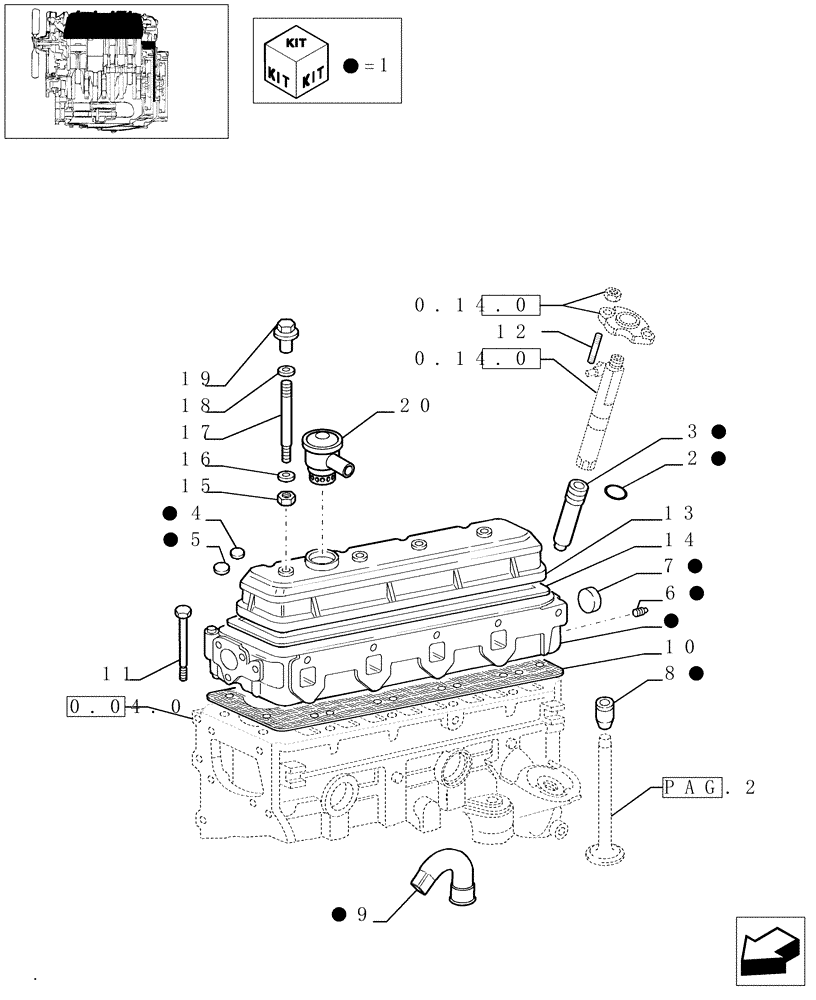

Запчасти Case IH JX1095N (0.06.0[01]) - CYLINDER HEAD (01) - ENGINE

1

504066010

CYLINDER HEAD

Assy.

1шт.

2

14453981

O-RING,0.989" ID x 0.07" Width

8шт.

3

4770859

SLEEVE

4шт.

4

14282170

PLUG,M20, Tapered, Stainless

1шт.

5

14282470

PLUG,M28, Tapered, Stainless

8шт.

6

99434231

PLUG

M10 x 1.25

1шт.

7

14282970

PLUG,M45, Tapered, Stainless

1шт.

8

4802126

VALVE GUIDE

+0.0

8шт.

8

4802127

VALVE GUIDE

+0.2

8шт.

9

4818862

HYD TUBE

4шт.

10

98456215

GASKET,1.35mm Thk

Thk.1.35

1шт.

10

98456216

CYLINDER HEAD GASKET,1.54mm Thk

Thk 1.54

1шт.

11

4796457

BOLT,Flng, M12 x 1.25 x 122.5mm

M12X1.25

18шт.

12

500380521

STUD,M5 x 12 x 45mm

M8X1.25X45

8шт.

13

99449541

VALVE COVER

1шт.

14

500301351

GASKET

1шт.

15

43362

NUT,M8 x 1.25, Cl 10

4шт.

16

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

4шт.

17

98458149

STUD,M8 x 88mm

M8 x 1.25 x 76

4шт.

18

98416134

SEALING WASHER,13mm ID x 24mm OD x 1.5mm Thk

4шт.

19

98417659

NUT,Hex Flg, M8, 1.25mm Pitch

4шт.

20

504058466

BREATHER

1шт.
