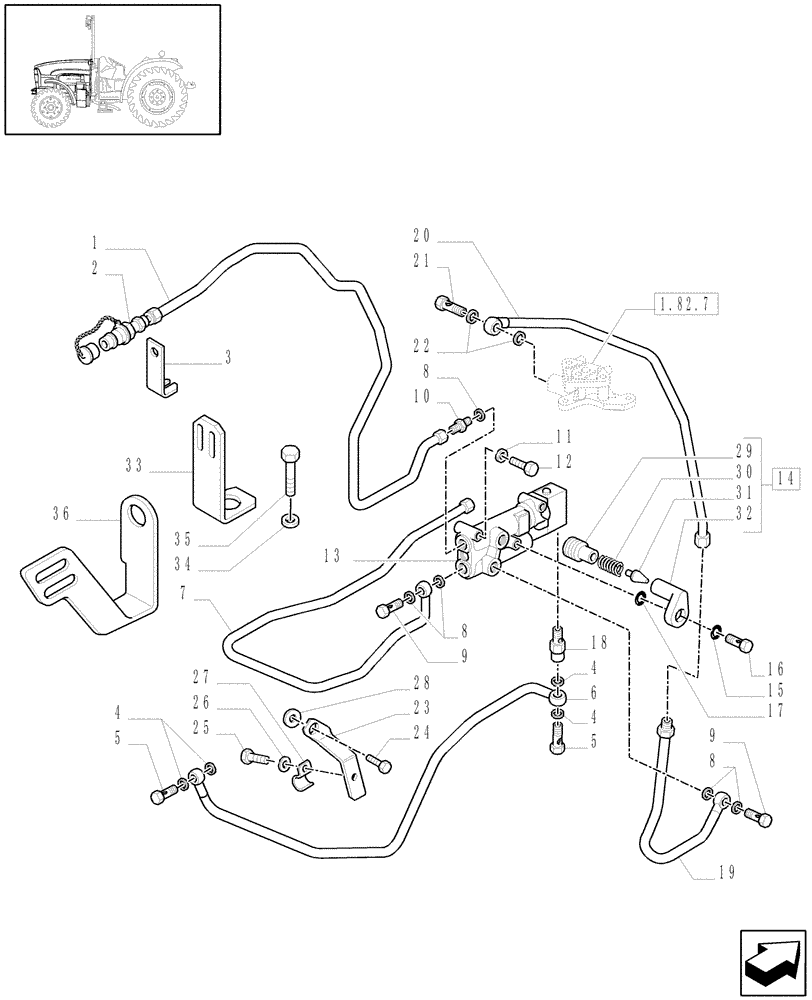

Запчасти Case IH JX1095N (1.82.713) - (VAR.370-418) TRAILER BRAKE VALVE (FRANCE) - PIPES (07) - HYDRAULIC SYSTEM

1

5188246

RIGID TUBE,12mm OD

1шт.

2

44015354

QUICK MALE COUPLING

1шт.

3

5174628

BRACKET

, Serial Range: -HJC075618

1шт.

4

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

4шт.

5

10185011

BANJO BOLT,M12 x 1.25 x 23mm

2шт.

6

5188530

RIGID TUBE

1шт.

7

5188216

RIGID TUBE

1шт.

8

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

5шт.

9

5184345

BANJO BOLT,M18 x 1.5 x 34mm

2шт.

10

5158799

HYD CONNECTOR

1шт.

11

10516674

LOCK WASHER,M8

2шт.

12

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

13

47132617

HYDRAULIC VALVE

Assy., Serial Range: -C5934

1шт.

13

87758573

HYDRAULIC VALVE

, Start Serial: D5934

1шт.

14

5186151

HYDRAULIC VALVE

1шт.

15

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

15

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

16

5168481

BANJO BOLT,M18 x 1.5 x 38mm

1шт.

17

14463181

O-RING,921" ID x 0.139" Width

1шт.

18

5113983

BANJO BOLT,Hex, M12 x 1,25 x 44mm L

1шт.

19

5186146

RIGID TUBE

1шт.

20

5174620

RIGID TUBE

VAR.370

1шт.

21

5182095

BANJO BOLT,M22 x 1.5 x 47mm

M22x1.5, VAR.370

1шт.

22

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

D=22

2шт.

23

5193284

BRACKET

1шт.

24

15980324

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

25

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

26

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

27

5193286

BRACKET

1шт.

28

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

1шт.

29

5186281

ADJUSTMENT SCREW

1шт.

30

5157487

SPRING,9.5mm OD x 44mm L

1шт.

31

5187827

GUIDE PIN

1шт.

32

5186148

HYD CONNECTOR,M20 x 1.5 x 99.5mm L

1шт.

33

87564245

BRACKET

, Serial Range: -C5587

1шт.

34

10902114

BOLT,Hex, M6 x 14mm, Cl 5.8, Full Thd

, Start Serial: HJC075619

2шт.

35

11194371

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.4mm Thk

, Start Serial: HJC075619

2шт.

36

87596109

BRACKET

, Start Serial: D5587

1шт.
