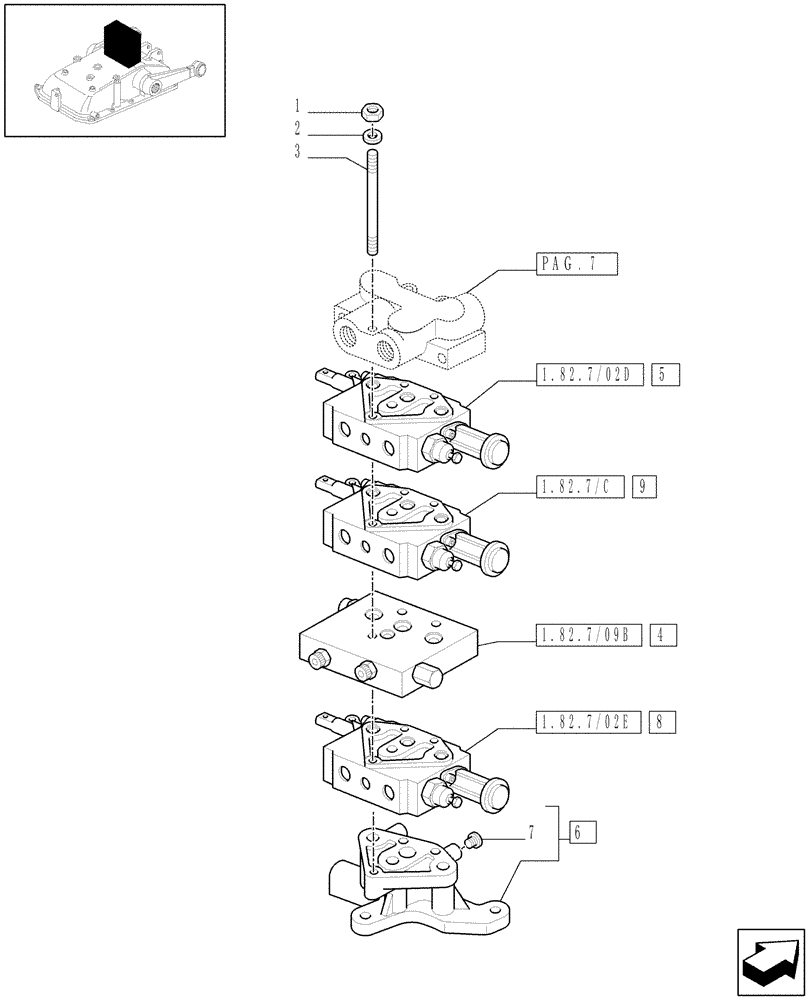

Запчасти Case IH JX1095N (1.82.7/09[05]) - (VAR.088) 3 REAR REMOTE VALVES - REMOTE VALVES - D5484 (07) - HYDRAULIC SYSTEM

1

5116857

NUT,3/8" - 24

3/8"

6шт.

2

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

D=10

3шт.

3

5149336

THREADED ROD,3/8" - 24 x 10"

3шт.

4

87538317

CONTROL VALVE

ASSY

1шт.

5

87396859

CONTROL VALVE

ASSY

1шт.

S/D W/Float

1шт.

6

5176800

FLANGE

ASSY

1шт.

7

10269650

PLUG

M16x1.5

1шт.

8

87396881

CONTROL VALVE

ASSY

1шт.

S/D W/Autom.Kick-Out

1шт.

9

87396877

CONTROL VALVE

ASSY

1шт.

S/D W/Autom.Kick-Out & Float

1шт.
