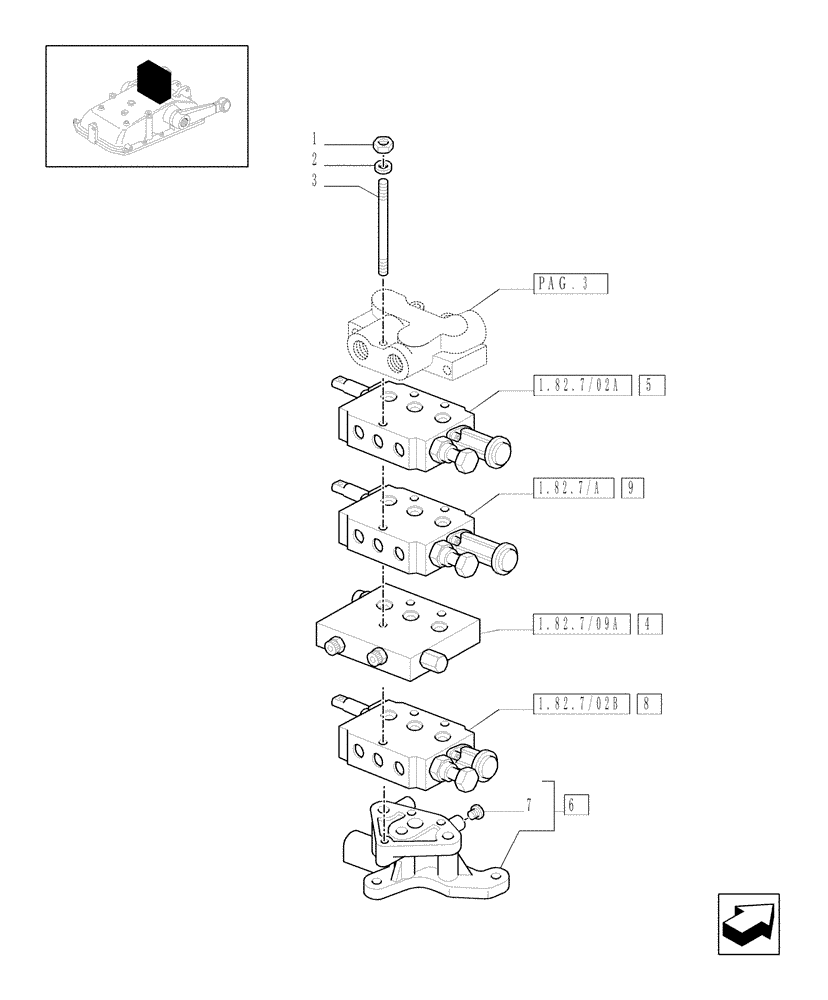

Запчасти Case IH JX1095N (1.82.7/09[01]) - (VAR.088) 3 REAR REMOTE VALVES - REMOTE VALVES - C5484 (07) - HYDRAULIC SYSTEM

1

5116857

NUT,3/8" - 24

3/8"

6шт.

2

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

D=10

3шт.

3

5149336

THREADED ROD,3/8" - 24 x 10"

3шт.

4

87342426

HYDRAULIC VALVE

ASSY

1шт.

5

5180686

CONTROL VALVE

ASSY

1шт.

S/D W/Float

1шт.

6

5176800

FLANGE

ASSY

1шт.

7

10269650

PLUG

M16x1.5

1шт.

8

5186278

CONTROL VALVE

ASSY

1шт.

S/D W/Kickout

1шт.

9

5186854

CONTROL VALVE

ASSY

1шт.

S/D W/Float & Kickout

1шт.
