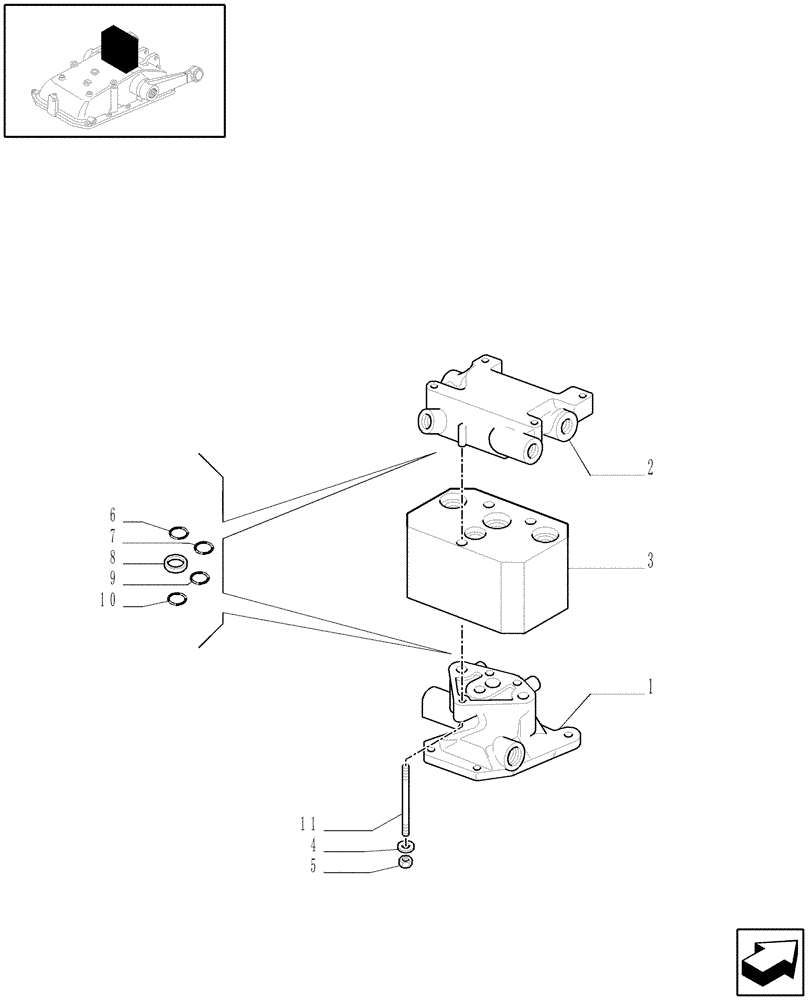

Запчасти Case IH JX1095N (1.82.7/08[01]) - (VAR.541) L/REMOTE VALVES FOR ELECTRONIC LIFT - CONTROL VALVE, RINGS - C5484 (07) - HYDRAULIC SYSTEM

1

5176480

FLANGE

1шт.

2

5173961

FLANGE

2шт.

3

87315508

SPACER

1шт.

4

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

5

5116857

NUT,3/8" - 24

3/8"

3шт.

6

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

DIA=24

3шт.

7

5146467

RING,19.2mm ID x 20.2mm OD x 2.3mm Thk

DIA=19.2

6шт.

8

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

3шт.

9

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

9шт.

10

5180283

RING,16mm ID x 18.5mm OD x 2.1mm Thk

DIA=18.72

9шт.

11

5150104

STUD,3/8" - 24 x 5"

3шт.
