(1.82.7/07) - (VAR.082-083-567-572) HIDRAULIK STABILISERS WITH "CEE" HOOK FOR MDC AND EDC - QUICK COUPLING

Запчасти Case IH JX1095N (1.82.7/07) - (VAR.082-083-567-572) HIDRAULIK STABILISERS WITH "CEE" HOOK FOR MDC AND EDC - QUICK COUPLING (07) - HYDRAULIC SYSTEM

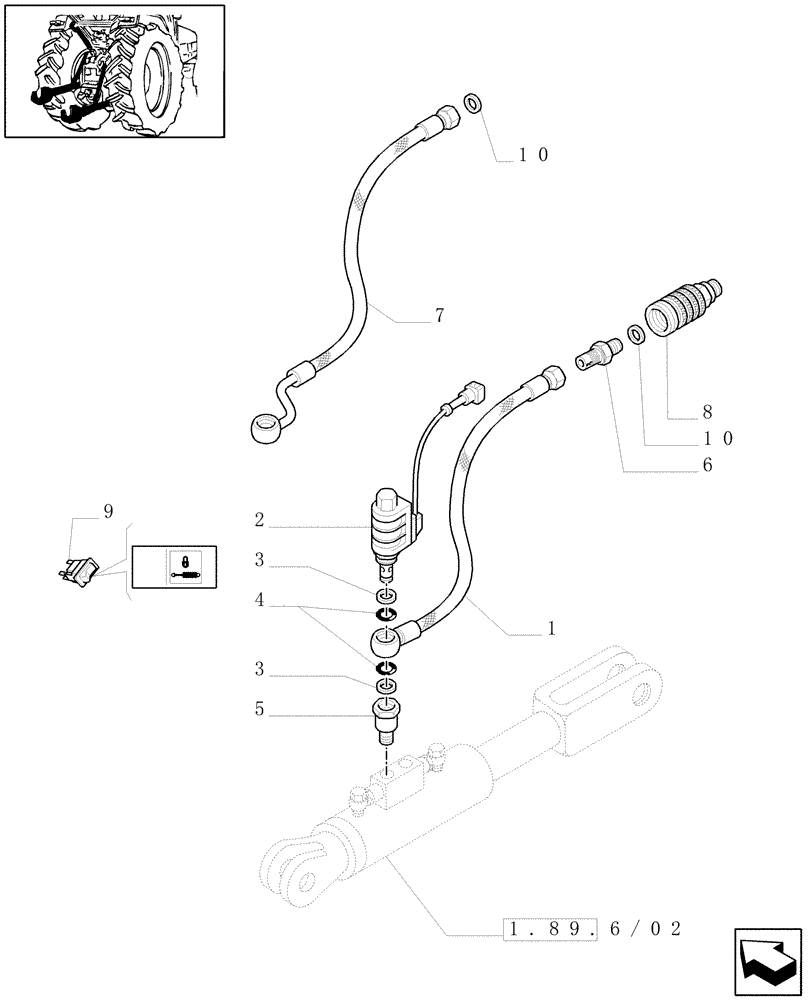

Схема запчастей Case IH JX1095N - (1.82.7/07) - (VAR.082-083-567-572) HIDRAULIK STABILISERS WITH "CEE" HOOK FOR MDC AND EDC - QUICK COUPLING (07) - HYDRAULIC SYSTEM
3
3
4
10
2
1
7
6
10
1.89.6/02
9
5
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87312995

FLEXIBLE HOSE

, Serial Range: -HJC080465

2шт.

VAR.567-572

1шт.

2

5187864

ELECTRO-VALVE

2шт.

3

5189534

WASHER,25.8mm ID x 30.2mm OD x 1.1mm Thk

2шт.

4

14457880

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2шт.

5

5187662

HYD CONNECTOR

2шт.

6

84136076

HYD CONNECTOR,M16 x 1.5 x 37mm L

2шт.

7

87343825

FLEXIBLE HOSE

RH, Start Serial: HJC080466

1шт.

7

87343826

FLEXIBLE HOSE

LH, Start Serial: HJC080466

1шт.

8

5179556

COUPLING, QUICK, FEM,Hex, M18 x 1.5 x 63.3mm L

M18x1.5, include p/n 1534623C1

2шт.

1534623C1

SEAL KIT

1шт.

8

5179557

COUPLING, QUICK, FEM

include p/n 1534623C1

2шт.

1534623C1

SEAL KIT

1шт.

9

5190064

LIMIT SWITCH

Stab. Lock

1шт.

10

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

4шт.
