(1.82.7/05[09]) - (VAR.419/1) 3 REMOTE VALVES FOR ELECTRONIC LIFTER W/HYD. DIVIDER - PIPES AND RINGS - D5484

Запчасти Case IH JX1095N (1.82.7/05[09]) - (VAR.419/1) 3 REMOTE VALVES FOR ELECTRONIC LIFTER W/HYD. DIVIDER - PIPES AND RINGS - D5484 (07) - HYDRAULIC SYSTEM

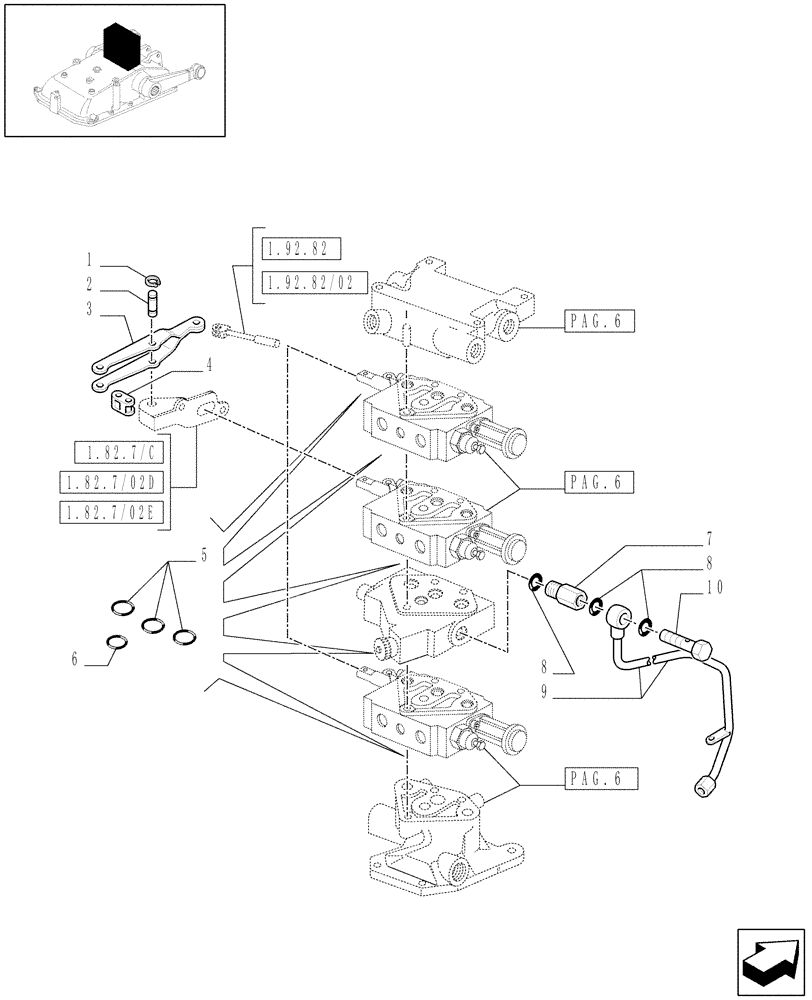

Схема запчастей Case IH JX1095N - (1.82.7/05[09]) - (VAR.419/1) 3 REMOTE VALVES FOR ELECTRONIC LIFTER W/HYD. DIVIDER - PIPES AND RINGS - D5484 (07) - HYDRAULIC SYSTEM
8
6
3
1.92.82
1.82.7/02e
2
4
9
8
1
pag.6
7
1.92.82/02
10
pag.6
pag.6
1.82.7/c
1.82.7/02d
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

11087776

CIRCLIP,Ext., M6, BLO

3шт.

2

5172456

PIN,6mm OD x 20mm L

3шт.

3

5178877

CLEVIS

3шт.

4

5116896

LINK,19.05mm Pitch

3шт.

5

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

6шт.

6

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING DIA=19.2MM

2шт.

7

5188525

REDUCER,M22 x 1.5 x M22 x 1.5

1шт.

8

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

D=22

3шт.

9

5186139

RIGID TUBE

1шт.

10

5182095

BANJO BOLT,M22 x 1.5 x 47mm

1шт.
