(1.82.7/05[04]) - (VAR.419/1) 3 REMOTE VALVES FOR ELECTRONIC LIFTER W/HYD. DIVIDER - PIPES AND RINGS - C5484

Запчасти Case IH JX1095N (1.82.7/05[04]) - (VAR.419/1) 3 REMOTE VALVES FOR ELECTRONIC LIFTER W/HYD. DIVIDER - PIPES AND RINGS - C5484 (07) - HYDRAULIC SYSTEM

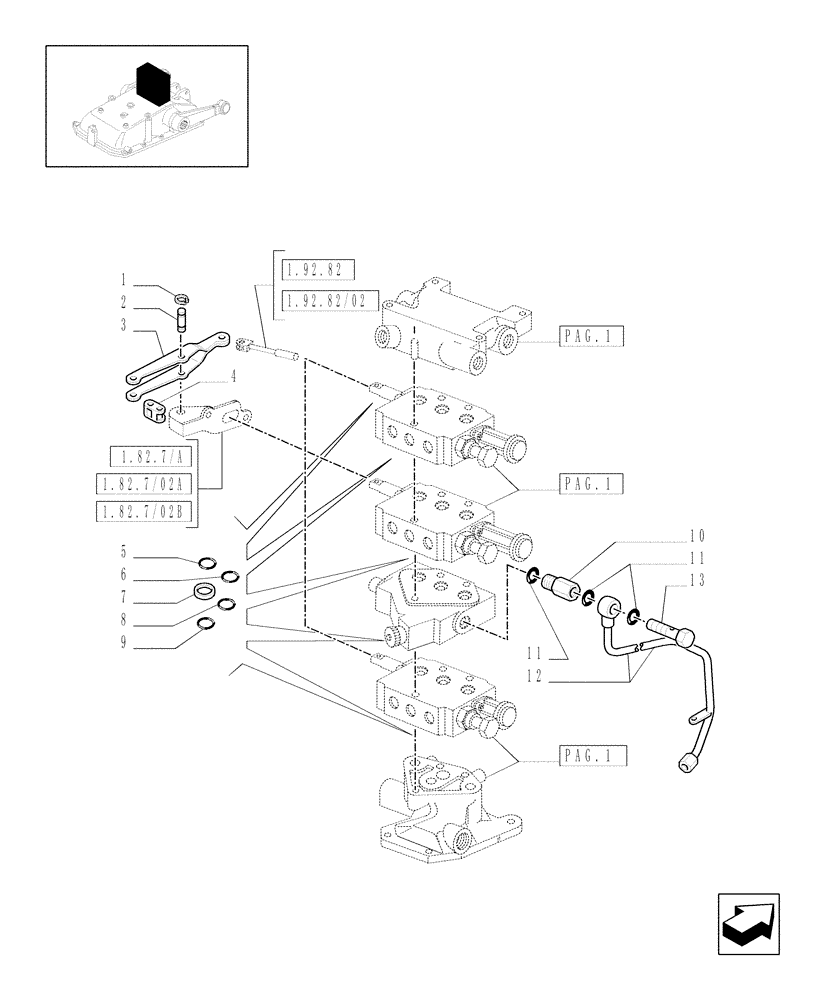

Схема запчастей Case IH JX1095N - (1.82.7/05[04]) - (VAR.419/1) 3 REMOTE VALVES FOR ELECTRONIC LIFTER W/HYD. DIVIDER - PIPES AND RINGS - C5484 (07) - HYDRAULIC SYSTEM
13
1.82.7/02b
11
8
pag.1
3
1
9
5
12
1.92.82
2
1.82.7/02a
7
6
11
1.92.82/02
pag.1
pag.1
1.82.7/a
4
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

11087776

CIRCLIP,Ext., M6, BLO

3шт.

2

5172456

PIN,6mm OD x 20mm L

3шт.

3

5178877

CLEVIS

3шт.

4

5116896

LINK,19.05mm Pitch

3шт.

5

5180283

RING,16mm ID x 18.5mm OD x 2.1mm Thk

DIA=18.72MM

6шт.

6

5146467

RING,19.2mm ID x 20.2mm OD x 2.3mm Thk

DIA=19.2MM

2шт.

7

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

DIA=24MM

2шт.

8

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

9

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

6шт.

10

5188525

REDUCER,M22 x 1.5 x M22 x 1.5

1шт.

11

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

D=22

3шт.

12

5186139

RIGID TUBE

1шт.

13

5182095

BANJO BOLT,M22 x 1.5 x 47mm

1шт.
