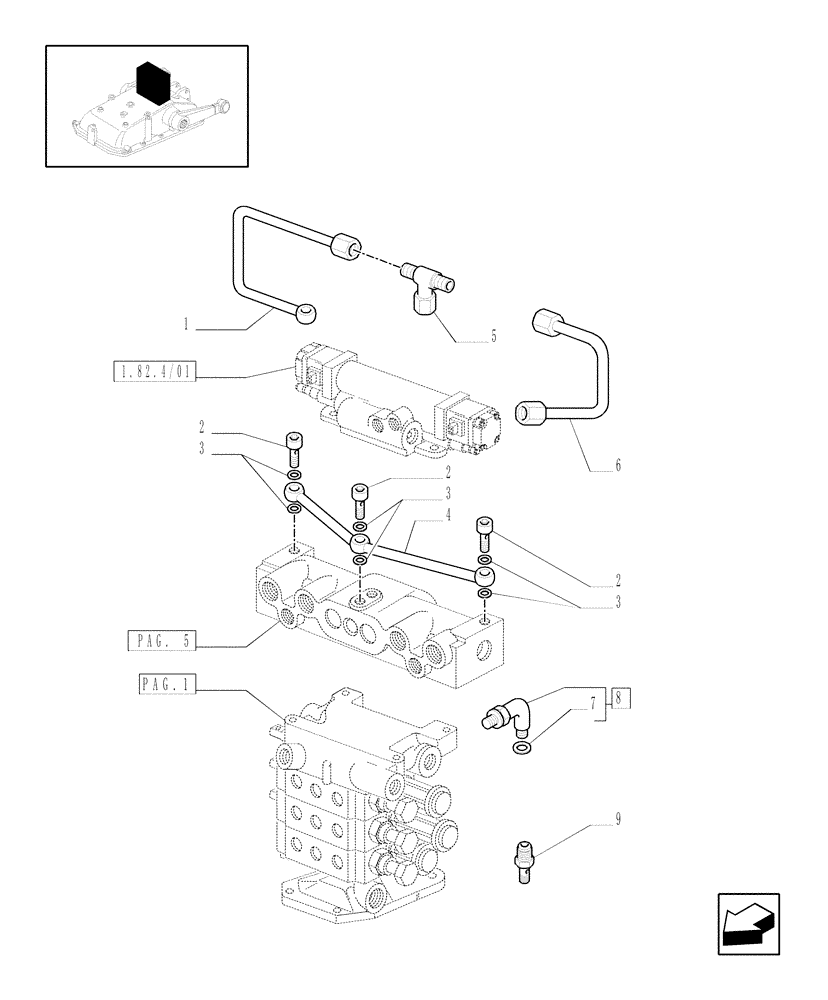

Запчасти Case IH JX1095N (1.82.7/05[03]) - (VAR.419/1) 3 REMOTE VALVES FOR ELECTRONIC LIFTER W/HYD. DIVIDER - PIPES - C5484 (07) - HYDRAULIC SYSTEM

1

5175120

RIGID TUBE

1шт.

2

5175070

BANJO BOLT,M8 x 1.25 x 24mm

M8

3шт.

3

10260060

SEALING WASHER,8.2mm ID x 14mm OD x 1mm Thk

8шт.

4

5175122

RIGID TUBE

1шт.

5

5175162

HYD CONNECTOR,1/2-20 UNF

1шт.

6

5179217

RIGID TUBE

, Serial Range: Discharge-Unload

1шт.

7

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

8

5166932

90 ELBOW,1/2-20 UNF, M12 x 1.5

M12 1/2-20

1шт.

9

5179004

HYD CONNECTOR,M8 x 1.5 x 36mm L

1шт.
