(1.82.7/05[01]) - (VAR.419/1) 3 REM. VALVES FOR ELECTRONIC LIFTER W/HYDRAULIC DIVIDER - VALVE AND FLANGE - C5484

Запчасти Case IH JX1095N (1.82.7/05[01]) - (VAR.419/1) 3 REM. VALVES FOR ELECTRONIC LIFTER W/HYDRAULIC DIVIDER - VALVE AND FLANGE - C5484 (07) - HYDRAULIC SYSTEM

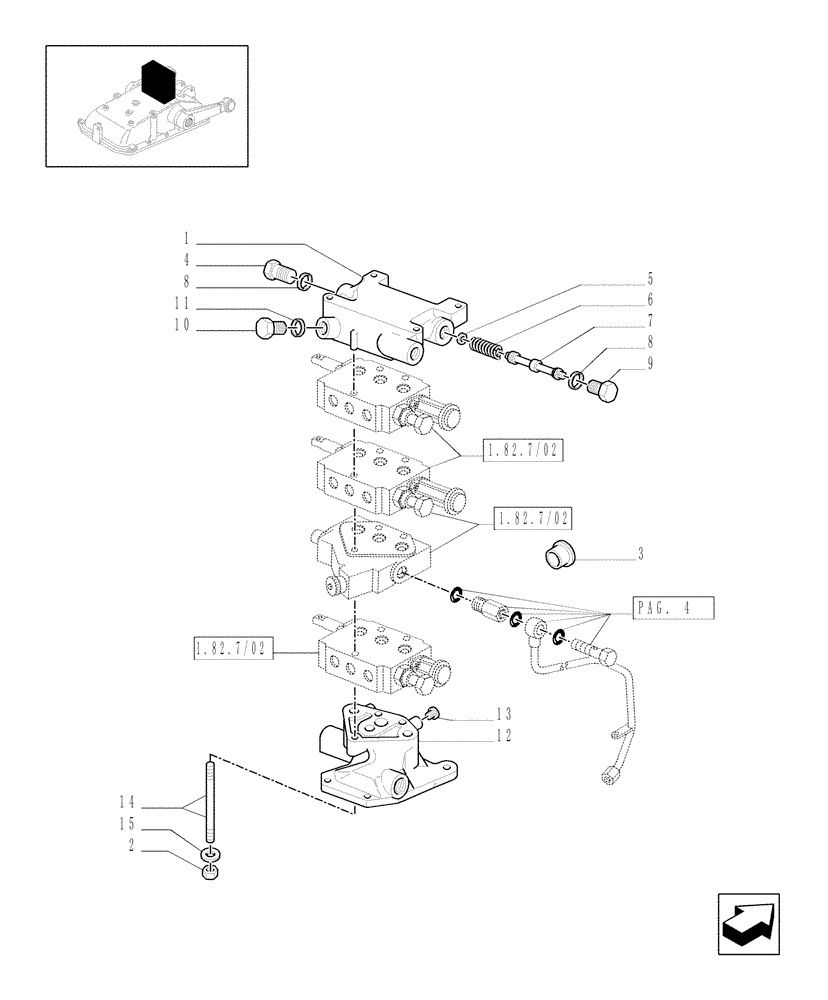

Схема запчастей Case IH JX1095N - (1.82.7/05[01]) - (VAR.419/1) 3 REM. VALVES FOR ELECTRONIC LIFTER W/HYDRAULIC DIVIDER - VALVE AND FLANGE - C5484 (07) - HYDRAULIC SYSTEM
4
3
1
6
2
1.82.7/02
1.82.7/02
9
pag. 4
10
15
14
8
12
1.82.7/02
5
11
8
13
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5186205

HYDRAULIC VALVE

Incl. Ref. 4, 11

1шт.

2

5116857

NUT,3/8" - 24

6шт.

3

5182438

PLUG,14mm ID x 19mm OD x 12mm Thk

2шт.

4

5173857

PLUG,Hex, M27 x 2

1шт.

5

5167122

VALVE

1шт.

6

83948862

SPRING,12.3mm OD x 76.2mm L

1шт.

7

83999793

HYDRAULIC VALVE

1шт.

8

14438185

O-RING,24mm ID x 3mm

1шт.

9

5167123

PLUG,7/16" - 20

1шт.

10

83957506

PLUG,3/4"

1шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

90 Duro, .924" ID x .116" Thk

1шт.

12

5176480

FLANGE

1шт.

13

10269601

PLUG,M16 x 1.5

M16

1шт.

14

5151505

THREADED ROD,3/8" - 24 x 8-1/4"

3шт.

15

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.
