(1.82.7/04[02]) - (VAR.419) THREE REMOTE VALVES FOR ELECTRONIC LIFT - PIPES - C5484

Запчасти Case IH JX1095N (1.82.7/04[02]) - (VAR.419) THREE REMOTE VALVES FOR ELECTRONIC LIFT - PIPES - C5484 (07) - HYDRAULIC SYSTEM

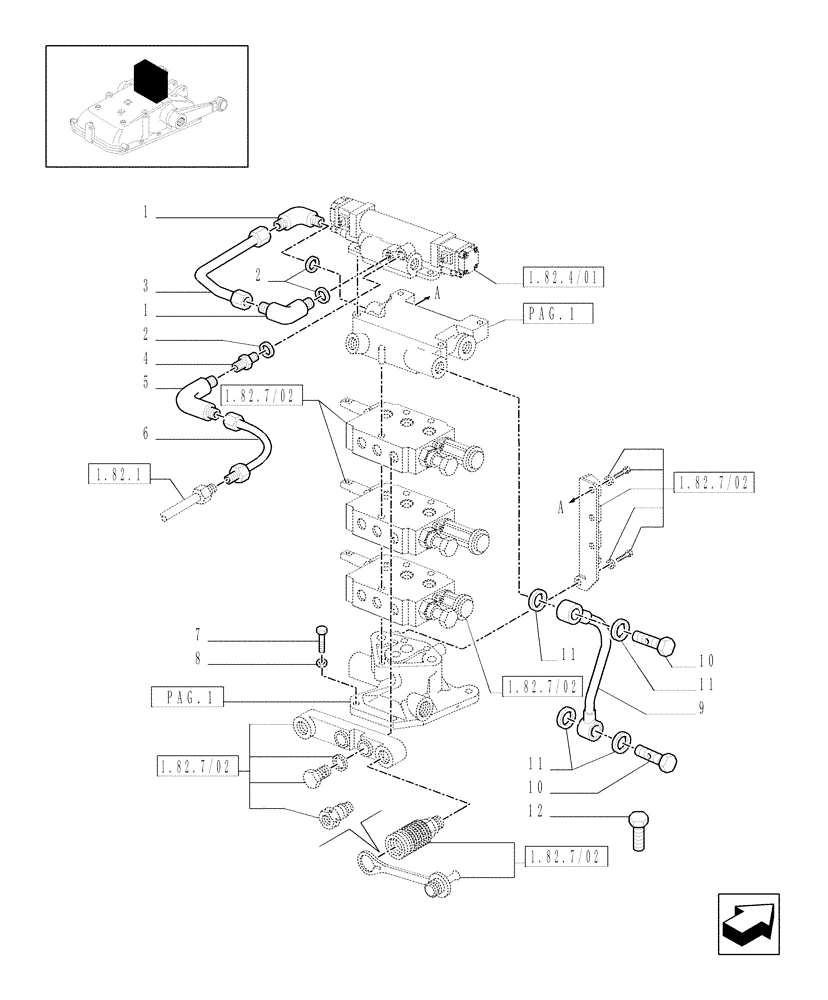

Схема запчастей Case IH JX1095N - (1.82.7/04[02]) - (VAR.419) THREE REMOTE VALVES FOR ELECTRONIC LIFT - PIPES - C5484 (07) - HYDRAULIC SYSTEM
1.82.4/01
11
7
4
pag.1
1.82.7/02
2
1
11
2
5
11
9
1.82.1
1.82.7/02
1.82.7/02
a
pag.1
1.82.7/02
8
6
10
1.82.7/02
3
10
a
12
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

80216773

ELBOW

90°, Male 37° FL - Male, W/O-Ring, 1/4" Tube

2шт.

2

80165202

O-RING

90 Duro, .351" ID x .072" Thk

3шт.

3

5174040

RIGID TUBE

Load Sensing

1шт.

4

82002503

HYD CONNECTOR,1/2-20 UNF-2A, 7/16-20 UNF-2A, 31.2mm L

1шт.

5

86513593

90 ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

1шт.

6

47131635

RIGID TUBE

1шт.

7

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

9

5188501

RIGID TUBE

Unload

1шт.

10

5184345

BANJO BOLT,M18 x 1.5 x 34mm

M18

2шт.

11

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

4шт.

12

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.
