(1.82.7/04[01]) - (VAR.419) THREE REMOTE VALVES FOR ELECTRONIC LIFT - VALVE AND FLANGE - C5484

Запчасти Case IH JX1095N (1.82.7/04[01]) - (VAR.419) THREE REMOTE VALVES FOR ELECTRONIC LIFT - VALVE AND FLANGE - C5484 (07) - HYDRAULIC SYSTEM

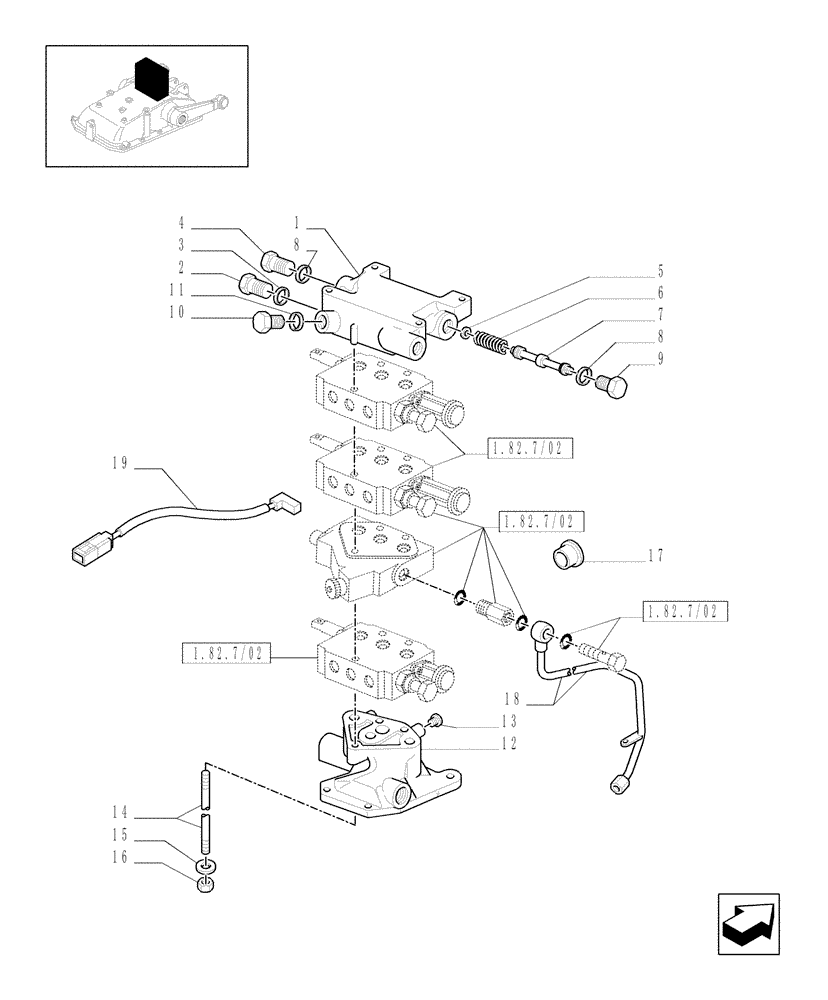

Схема запчастей Case IH JX1095N - (1.82.7/04[01]) - (VAR.419) THREE REMOTE VALVES FOR ELECTRONIC LIFT - VALVE AND FLANGE - C5484 (07) - HYDRAULIC SYSTEM
13
12
16
15
6
1.82.7/02
19
4
5
17
1
1.82.7/02
14
10
7
11
2
8
9
1.82.7/02
18
1.82.7/02
8
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5173961

FLANGE

Incl. Ref. 2 To 11

1шт.

2

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

3

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

4

5173857

PLUG,Hex, M27 x 2

1шт.

5

5167122

VALVE

1шт.

6

83948862

SPRING,12.3mm OD x 76.2mm L

1шт.

7

83999793

HYDRAULIC VALVE

1шт.

8

14438185

O-RING,24mm ID x 3mm

1шт.

9

5167123

PLUG,7/16" - 20

1шт.

10

83957506

PLUG,3/4"

1шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

90 Duro, .924" ID x .116" Thk

1шт.

12

5176480

FLANGE

1шт.

13

10269650

PLUG

1шт.

14

5151505

THREADED ROD,3/8" - 24 x 8-1/4"

3шт.

15

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

16

5116857

NUT,3/8" - 24

6шт.

17

5182438

PLUG,14mm ID x 19mm OD x 12mm Thk

2шт.

18

5186139

RIGID TUBE

1шт.
