(1.82.7/03[01]) - (VAR.390/1-399-498-498/1) 3 REM VALVES W/FLOW-RATE REG. AND HYD. DIVIDER - REMOTE VALVES - C5484

Запчасти Case IH JX1095N (1.82.7/03[01]) - (VAR.390/1-399-498-498/1) 3 REM VALVES W/FLOW-RATE REG. AND HYD. DIVIDER - REMOTE VALVES - C5484 (07) - HYDRAULIC SYSTEM

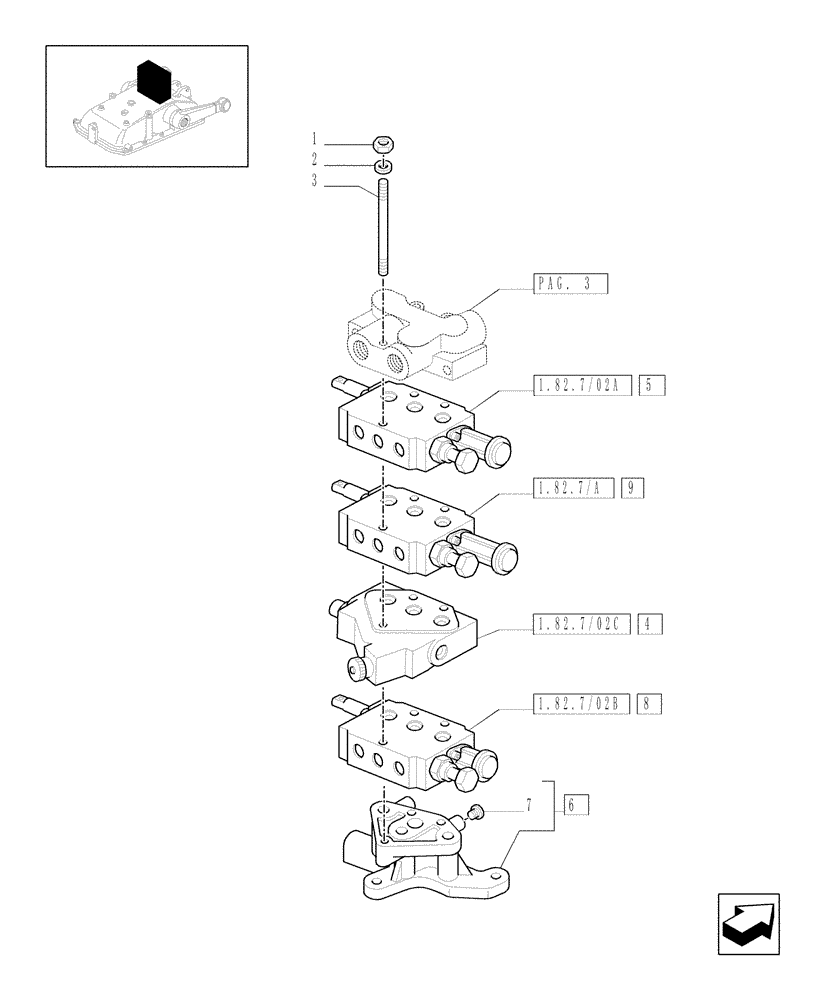

Схема запчастей Case IH JX1095N - (1.82.7/03[01]) - (VAR.390/1-399-498-498/1) 3 REM VALVES W/FLOW-RATE REG. AND HYD. DIVIDER - REMOTE VALVES - C5484 (07) - HYDRAULIC SYSTEM
1
1.82.7/02b
3
1.82.7/a
2
1.82.7/02c
pag. 3
9
6
8
4
7
5
1.82.7/02a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5116857

NUT,3/8" - 24

3/8"

6шт.

2

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

3

5149336

THREADED ROD,3/8" - 24 x 10"

3шт.

4

5186284

HYDRAULIC VALVE

Assy.

1шт.

5

5180686

CONTROL VALVE

Assy., W/Float

1шт.

6

5176800

FLANGE

1шт.

7

10269650

PLUG

M16

1шт.

8

5186278

CONTROL VALVE

Assy., W/Kick-Out

1шт.

9

5186854

CONTROL VALVE

Assy., W/Float & Kick-Out

1шт.
