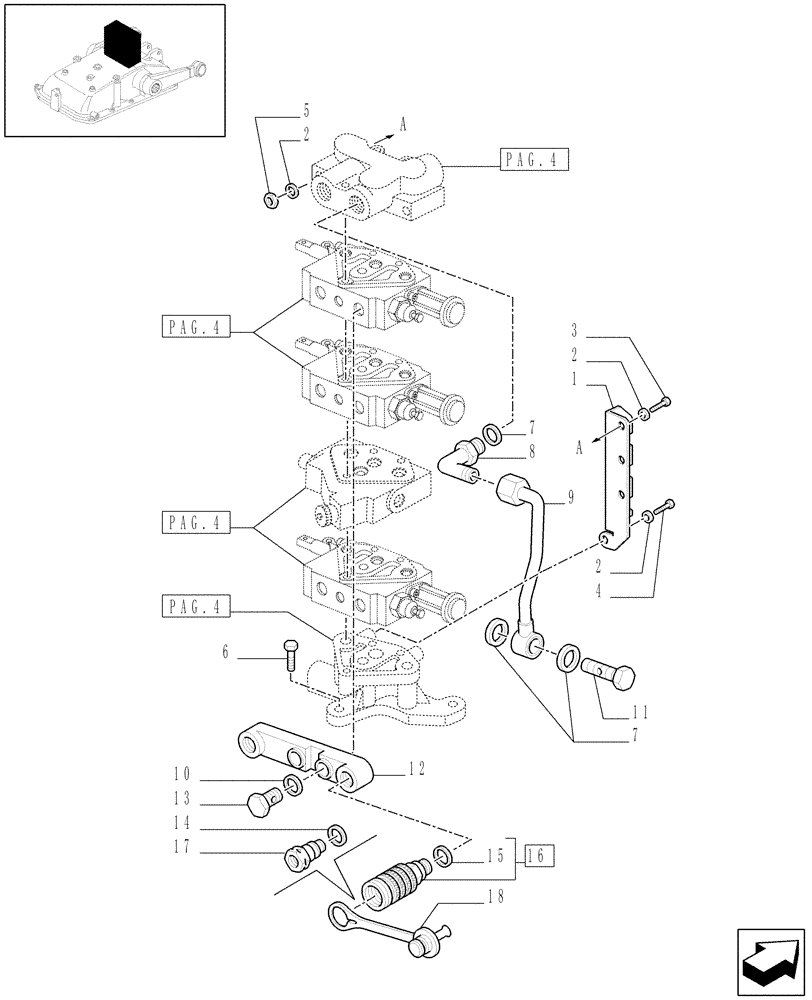

Запчасти Case IH JX1095N (1.82.7/02[06]) - (VAR.390-498/2) THREE REMOTE VALVES & FLOW-RATE REGULATOR - PIPES AND QUICK COUPLING - D5484 (07) - HYDRAULIC SYSTEM

1

5179944

CONSOLE

1шт.

2

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

3

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

2шт.

4

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

12164714

NUT,M10 x 1.25, Cl 8

2шт.

6

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

7

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

8

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

1шт.

9

5188499

RIGID TUBE

1шт.

10

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

6шт.

11

5184345

BANJO BOLT,M18 x 1.5 x 34mm

M18x34

1шт.

12

5185533

HYD CONNECTOR

3шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

6шт.

14

5168481

BANJO BOLT,M18 x 1.5 x 38mm

M18

6шт.

15

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

16

5179557

COUPLING, QUICK, FEM

include p/n 1534623C1

6шт.

1534623C1

SEAL KIT

1шт.

17

5101741

QUICK MALE COUPLING

6шт.

18

5186723

DUST CAP,24mm, Black

Black, Std.

2шт.
