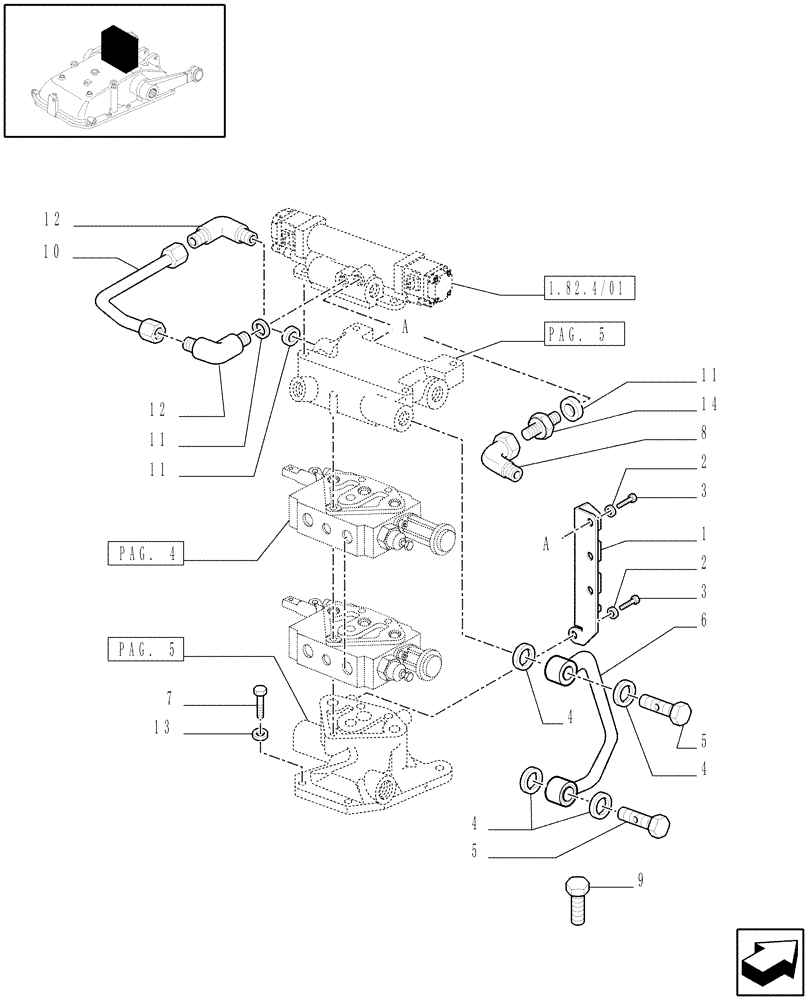

Запчасти Case IH JX1095N (1.82.7/01[06]) - (VAR.821-832) ELECTRONIC LIFT (OPEN CENTER) - EXTRA EXTERNAL CONTROL VALVE AND PIPES, QUICKCOUPLINGS - D5484 (07) - HYDRAULIC SYSTEM

1

5178435

BRACKET

1шт.

2

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

3

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

4

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

4шт.

5

5184345

BANJO BOLT,M18 x 1.5 x 34mm

M18

2шт.

6

5174038

RIGID TUBE

Unload

1шт.

7

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

8

86513593

90 ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

1шт.

9

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

10

5174040

RIGID TUBE

Load Sensor

1шт.

11

80165202

O-RING

90 Duro, .351" ID x .072" Thk

3шт.

12

80216773

ELBOW

90°, Male 37° FL - Male, W/O-Ring, 1/4" Tube

2шт.

13

82002503

HYD CONNECTOR,1/2-20 UNF-2A, 7/16-20 UNF-2A, 31.2mm L

1/2"-20

1шт.

14

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.
