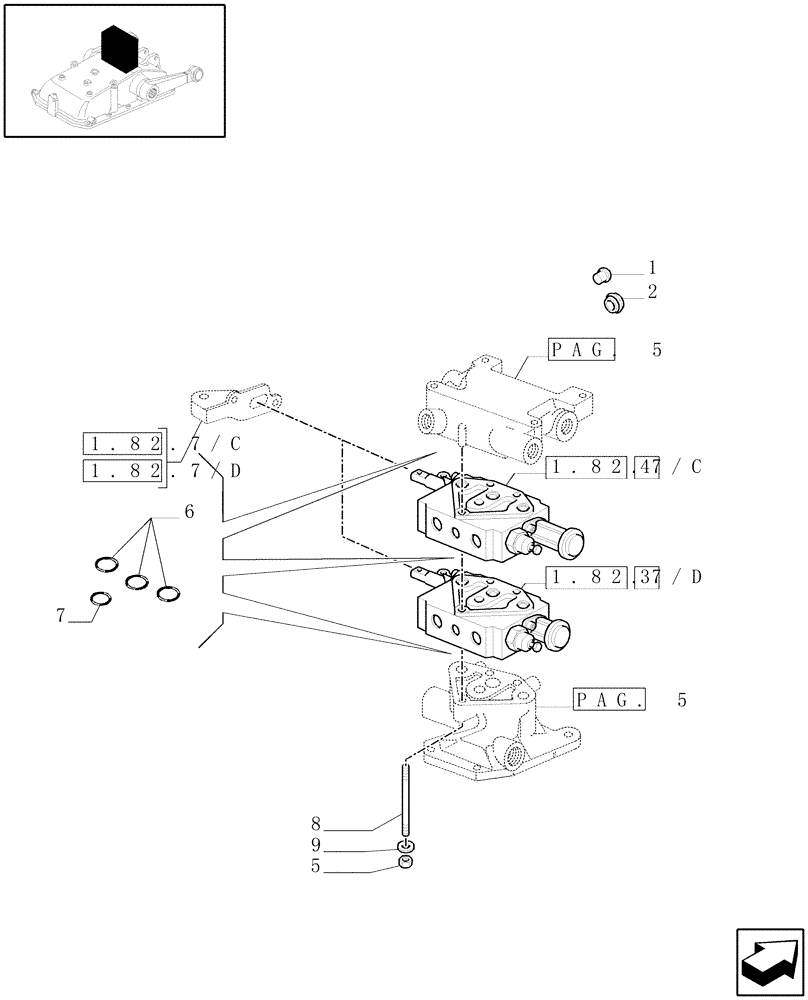

Запчасти Case IH JX1095N (1.82.7/01[04]) - (VAR.821-832) ELECTRONIC LIFT (OPEN CENTER) - EXTRA EXTERNAL CONTROL VALVE AND PIPES, RINGS AND FORK - D5484 (07) - HYDRAULIC SYSTEM

1

5154178

PLUG,22mm

DIA=22

1шт.

2

5182438

PLUG,14mm ID x 19mm OD x 12mm Thk

DIA=14

2шт.

3

87396848

CONTROL VALVE

Assy.

1шт.

4

87396877

CONTROL VALVE

Assy., S/D W/Autom.Kick-Out & Float

1шт.

5

5116857

NUT,3/8" - 24

3/8"

3шт.

6

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

9шт.

7

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING DIA=19.2

3шт.

8

5150104

STUD,3/8" - 24 x 5"

3шт.

9

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.
