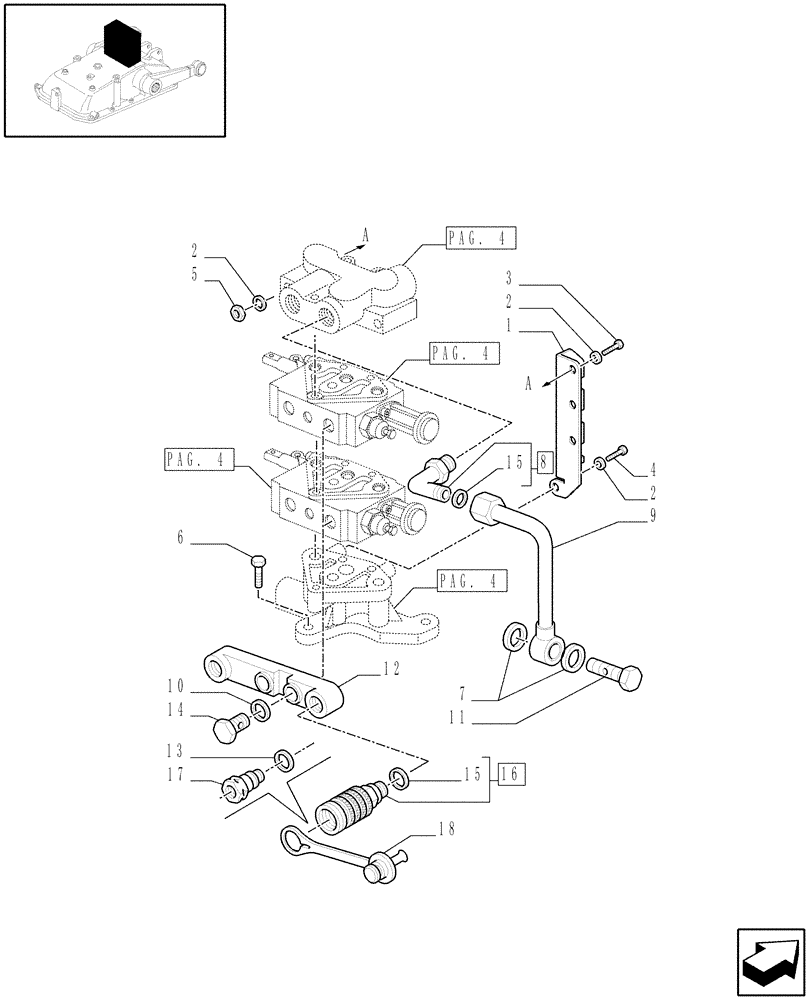

Запчасти Case IH JX1095N (1.82.7[06]) - EXTRA EXTERNAL CONTROL VALVES AND PIPES - D5484 (07) - HYDRAULIC SYSTEM

1

5178435

BRACKET

1шт.

2

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

3

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

2шт.

4

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

12164714

NUT,M10 x 1.25, Cl 8

2шт.

6

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

7

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

8

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

DIA=22MM

1шт.

9

5173694

RIGID TUBE

1шт.

10

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

6шт.

11

5184345

BANJO BOLT,M18 x 1.5 x 34mm

M18x34

1шт.

12

5185533

HYD CONNECTOR

2шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

14

5168481

BANJO BOLT,M18 x 1.5 x 38mm

M18

4шт.

15

14438085

O-RING,19.3mm ID x 2.4mm

5шт.

16

5179557

COUPLING, QUICK, FEM

include p/n 1534623C1

4шт.

1534623C1

SEAL KIT

1шт.

17

5101741

QUICK MALE COUPLING

4шт.

18

5186723

DUST CAP,24mm, Black

Black, Std.

4шт.
