(1.82.7[05]) - EXTRA EXTERNAL CONTROL VALVES AND PIPES - D5484

Запчасти Case IH JX1095N (1.82.7[05]) - EXTRA EXTERNAL CONTROL VALVES AND PIPES - D5484 (07) - HYDRAULIC SYSTEM

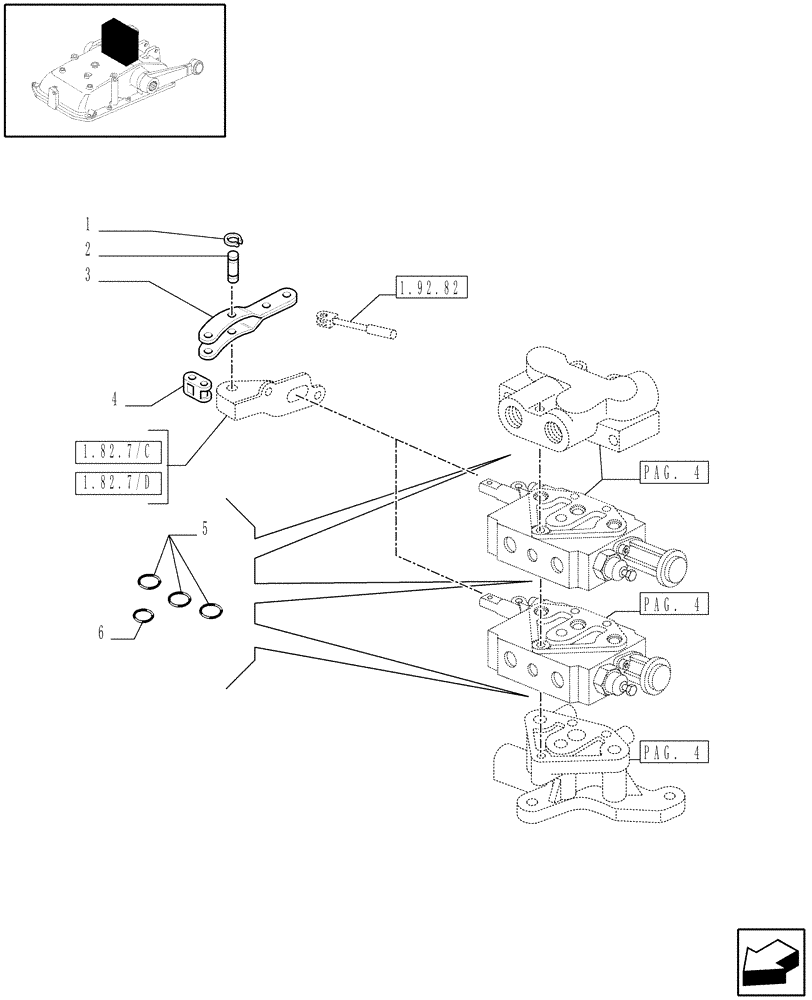

Схема запчастей Case IH JX1095N - (1.82.7[05]) - EXTRA EXTERNAL CONTROL VALVES AND PIPES - D5484 (07) - HYDRAULIC SYSTEM
pag. 4
pag. 4
1.92.82
1
pag. 4
5
3
1.82.7/d
1.82.7/c
6
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

11087776

CIRCLIP,Ext., M6, BLO

2шт.

2

5172456

PIN,6mm OD x 20mm L

2шт.

3

5178877

CLEVIS

2шт.

4

5116896

LINK,19.05mm Pitch

2шт.

5

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

9шт.

6

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING DIA=19.2MM

3шт.
