(1.82.7[02]) - EXTRA EXTERNAL CONTROL VALVES AND PIPES - C5484

Запчасти Case IH JX1095N (1.82.7[02]) - EXTRA EXTERNAL CONTROL VALVES AND PIPES - C5484 (07) - HYDRAULIC SYSTEM

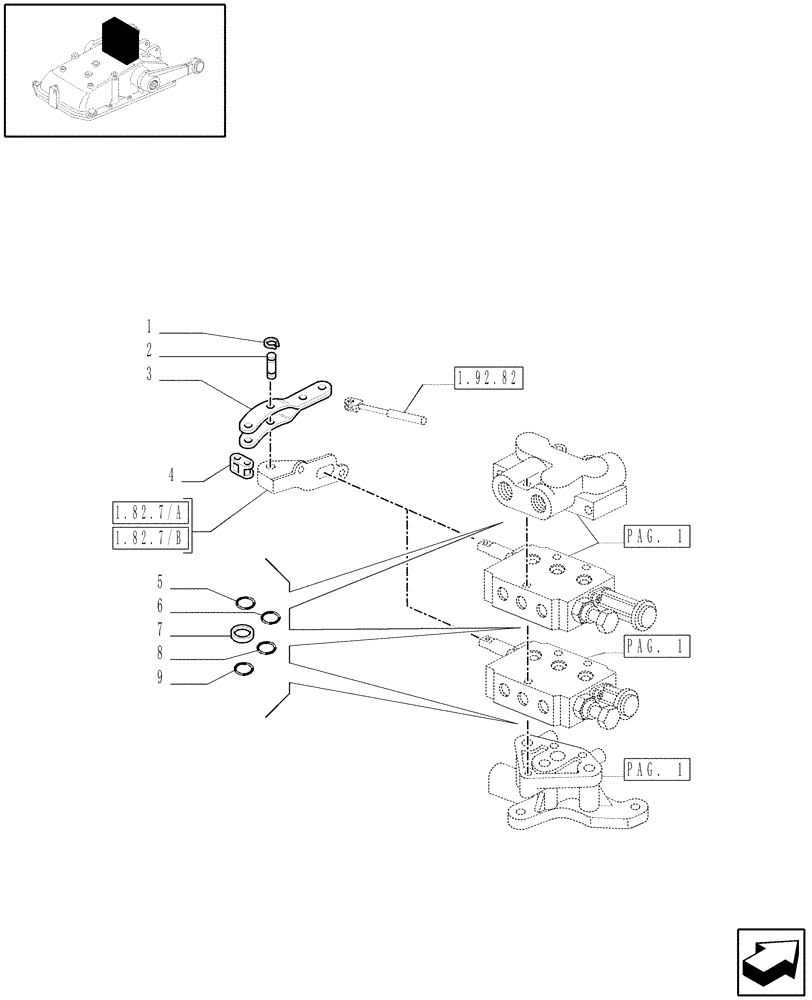

Схема запчастей Case IH JX1095N - (1.82.7[02]) - EXTRA EXTERNAL CONTROL VALVES AND PIPES - C5484 (07) - HYDRAULIC SYSTEM
pag. 1
pag. 1
4
1.82.7/b
1
8
9
5
3
7
2
1.82.7/a
pag. 1
6
1.92.82
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

11087776

CIRCLIP,Ext., M6, BLO

2шт.

2

5172456

PIN,6mm OD x 20mm L

2шт.

3

5178877

CLEVIS

2шт.

4

5116896

LINK,19.05mm Pitch

2шт.

5

5180283

RING,16mm ID x 18.5mm OD x 2.1mm Thk

DIA=18.72MM

9шт.

6

5146467

RING,19.2mm ID x 20.2mm OD x 2.3mm Thk

DIA=19.2MM

3шт.

7

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

DIA=24MM

3шт.

8

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

3шт.

9

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

9шт.

Выбрано товаров: 9
