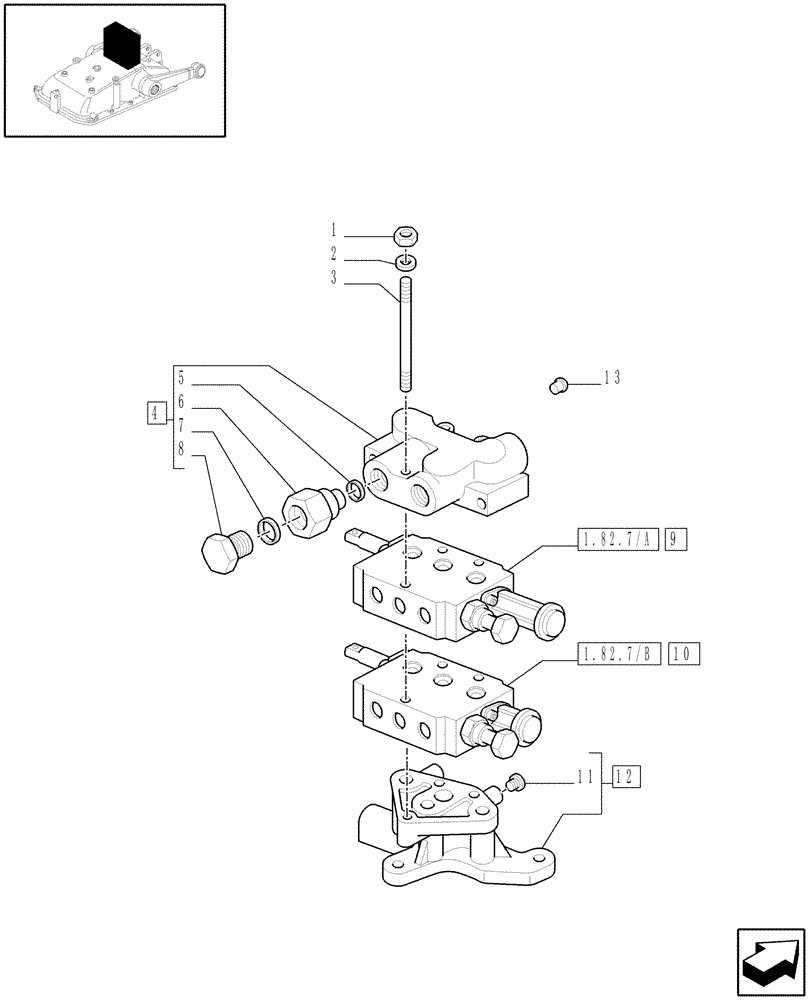

Запчасти Case IH JX1095N (1.82.7[01]) - EXTRA EXTERNAL CONTROL VALVES AND PIPES - C5484 (07) - HYDRAULIC SYSTEM

1

5116857

NUT,3/8" - 24

3/8"

6шт.

2

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

DIA=10

3шт.

3

5151506

THREADED ROD,3/8" - 24 x 6-5/8"

3шт.

4

5173758

SUPPORT

Assy.

1шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

6

5174043

HYD CONNECTOR,Hex, M22 x 1.5 x 52mm L

1шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

90 Duro, .924" ID x .116" Thk

1шт.

8

83957506

PLUG,3/4"

1шт.

9

5186854

CONTROL VALVE

Assy., W/Float & Kick-Out

1шт.

10

5161780

CONTROL VALVE

Assy.

1шт.

11

10269650

PLUG

M16

1шт.

12

5176800

FLANGE

1шт.

13

5154178

PLUG,22mm

DIA=22, W/Cab

1шт.
