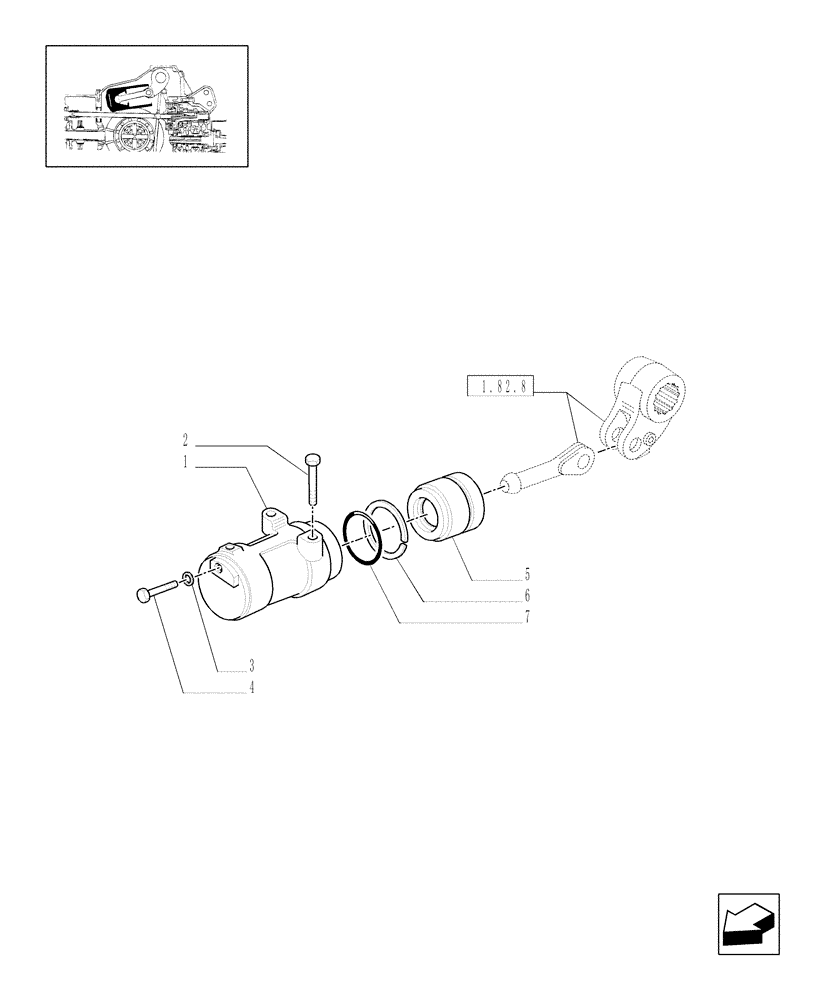

Запчасти Case IH JX1095N (1.82.6) - CYLINDERS AND PISTONS (07) - HYDRAULIC SYSTEM

1

5176521

CYLINDER,95.04mm Bore Dia

1шт.

2

15981334

BOLT,Hex, M16 x 1.5 x 75mm, Cl 10.9

2шт.

3

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

4

15977521

BOLT,Hex, M14 x 1.5 x 60mm, Cl 8.8

1шт.

5

5176597

PISTON,95mm Bore, 68mm W

1шт.

6

5176620

O-RING,Quad, 4.2mm Thk x 85.7mm ID

1шт.

7

80511526

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

3.53x85.32

1шт.
