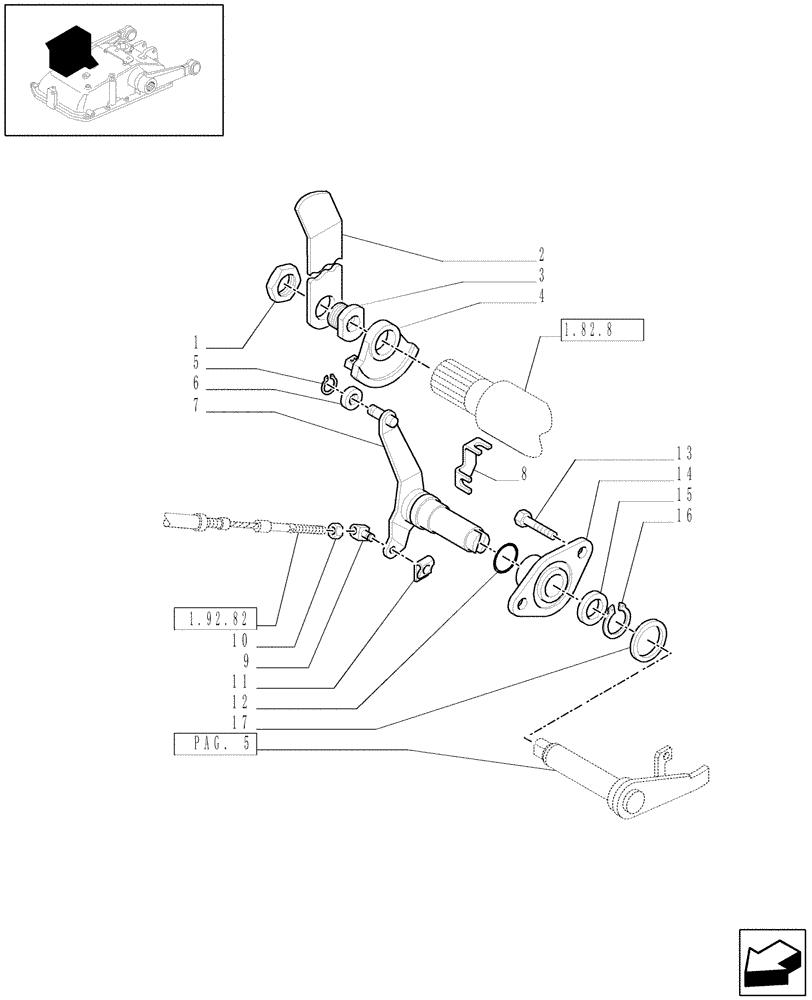

Запчасти Case IH JX1095N (1.82.5[06]) - LIFT CONTROL (07) - HYDRAULIC SYSTEM

1

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

JX1095N

1шт.

2

5171476

LEVER

JX1095N

1шт.

3

5176286

LOCK NUT

JX1095N

1шт.

4

5176272

SECTOR

TOOTHED SECTOR JX1095N

1шт.

5

89990741

SNAP RING

JX1095N

1шт.

6

5111028

ROLLER,18mm OD x 10mm L

JX1095N

1шт.

7

5176289

LEVER

JX1095N

1шт.

7

5188533

LEVER

JX1095V

1шт.

8

5176340

BRACKET

1шт.

9

5138330

PIN,5mm OD x 17.5mm L

1шт.

10

12574211

NUT,M6 x 1, Cl 8

1шт.

11

11063876

SPRING CLIP,M5 x 4mm

1шт.

12

14457081

O-RING,12.37mm ID x 2.62mm

1шт.

13

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

14

5176916

SUPPORT

1шт.

15

10520204

WASHER,16.4mm ID x 28mm OD x 3mm Thk

1шт.

16

300625

SNAP RING,M16, Ext

1шт.

17

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.
