Запчасти Case IH JX1095N (1.82.4/01) - (VAR.821-832) ELECTRONIC LIFTER (OPEN CENTER) - VALVE AND COMPONENTS (07) - HYDRAULIC SYSTEM

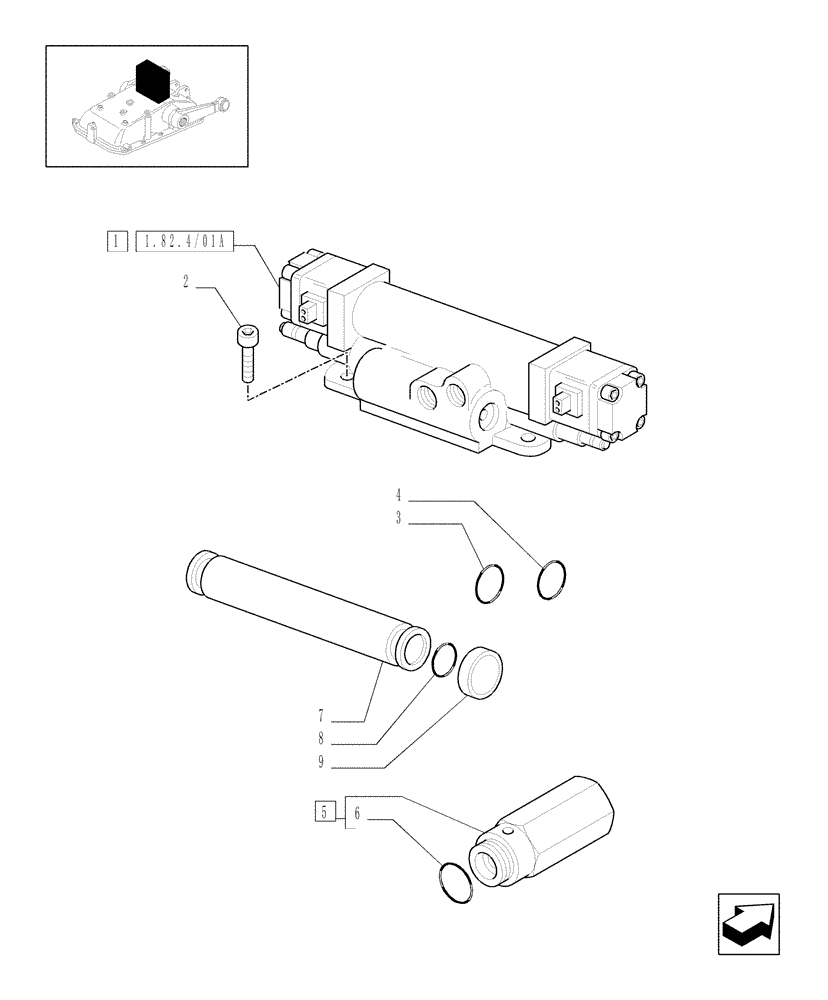

Схема запчастей Case IH JX1095N - (1.82.4/01) - (VAR.821-832) ELECTRONIC LIFTER (OPEN CENTER) - VALVE AND COMPONENTS (07) - HYDRAULIC SYSTEM
2
9
1
5
7
8
4
6
1.82.4/01a
3

Артикул

Название

Примечание

Количество

1

82011395

HYDRAULIC VALVE

Assy.

1шт.

2

81864028

HEX SOC SCREW,7/16" - 14 x 1", Gr 8

Socket Hd, 7/16"-14 x 1"

4шт.

3

80272344

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

90 Duro, .487" ID x .103" Thk

2шт.

4

83949068

O-RING,0.103" Thk x 1.799" ID, -133, Cl 6, 90 Duro

1.812" ID x .103" Thk

1шт.

5

5117739

VALVE PRESSURE RELIE,M20 x 1.5

Assy.

1шт.

6

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

7

5176630

PIPE,20mm ID x 105mm L

1шт.

8

14457281

O-RING,0.612" ID x 0.103" Width

2шт.

9

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

2шт.

Выбрано товаров: 9
