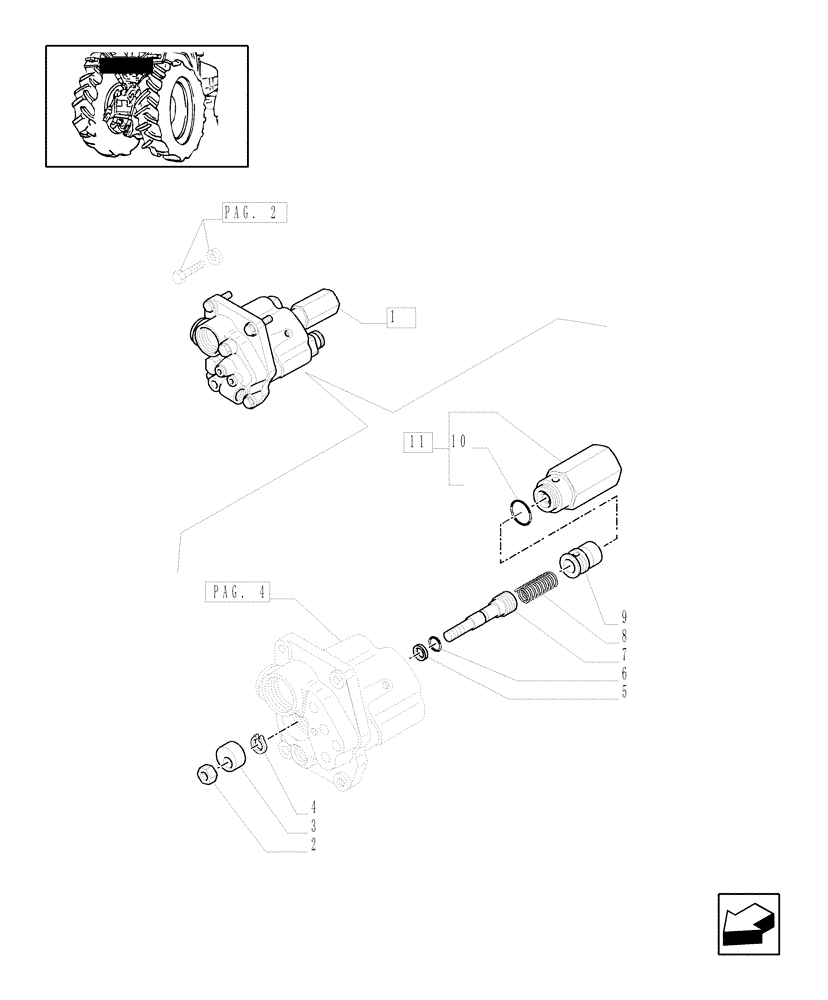

Запчасти Case IH JX1095N (1.82.4[03]) - LIFTER, DISTRIBUTOR AND VALVES (07) - HYDRAULIC SYSTEM

1

47124174

CONTROL VALVE

Assy.

1шт.

2

43362

NUT,M8 x 1.25, Cl 10

1шт.

3

5170590

SPACER,12mm ID x 17mm OD x 12mm L

1шт.

4

13397476

SNAP RING,M10.8, Int

1шт.

5

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

6

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

M6.75 ID x 1.78 Thk

1шт.

7

5170591

PIN,16mm OD x 72mm L

1шт.

8

5155844

SPRING,Compression, 11mm OD x 34mm L

1шт.

9

47124173

VOLTAGE REGULATOR

1шт.

10

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

11

5117739

VALVE PRESSURE RELIE,M20 x 1.5

1шт.
