(1.82.0/01) - (VAR.821-832) ELECTRONIC LIFT (OPEN CENTER) - HOUSING AND COVERS

Запчасти Case IH JX1095N (1.82.0/01) - (VAR.821-832) ELECTRONIC LIFT (OPEN CENTER) - HOUSING AND COVERS (07) - HYDRAULIC SYSTEM

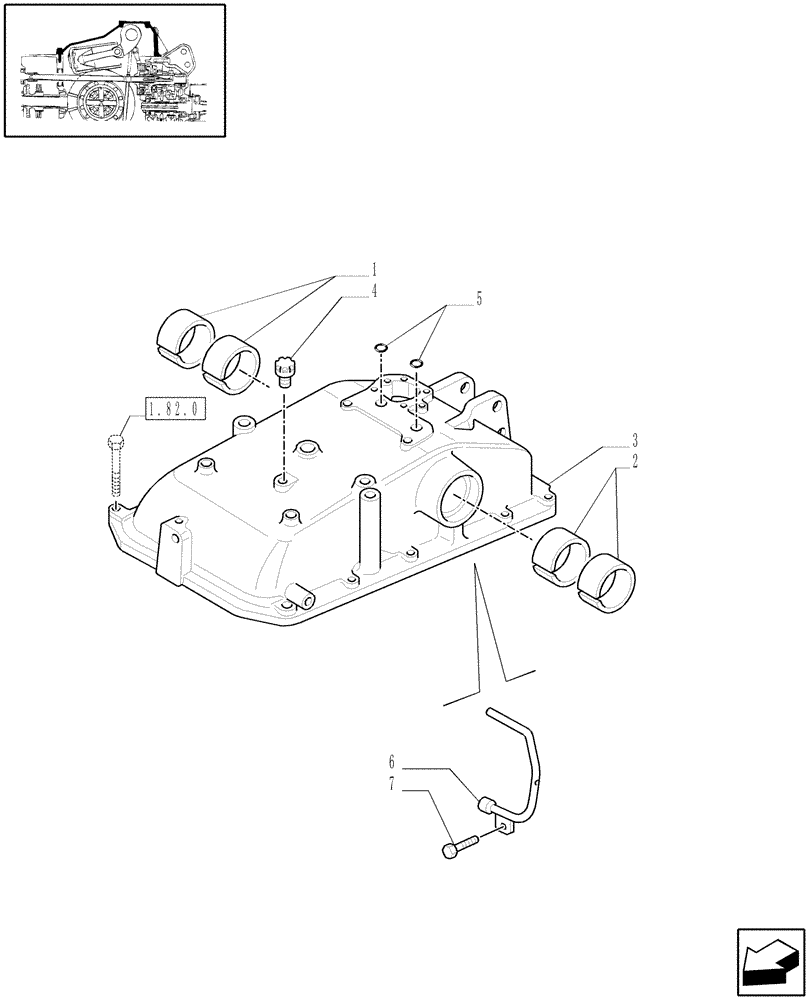

Схема запчастей Case IH JX1095N - (1.82.0/01) - (VAR.821-832) ELECTRONIC LIFT (OPEN CENTER) - HOUSING AND COVERS (07) - HYDRAULIC SYSTEM
4
5
3
7
1.82.0
6
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5181871

BUSHING,47.98mm ID x 53.03mm OD x 35mm L

RH

2шт.

2

5181870

BUSHING,55.1mm ID x 60.03mm OD x 35mm L

LH

2шт.

3

87382594

BODY

Incl. Ref. 1, 2

1шт.

4

89636958

BREATHER

1шт.

5

14457581

O-RING,0.799" ID x 0.103" Width

2шт.

6

5183490

RIGID TUBE

1шт.

7

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

Выбрано товаров: 7
