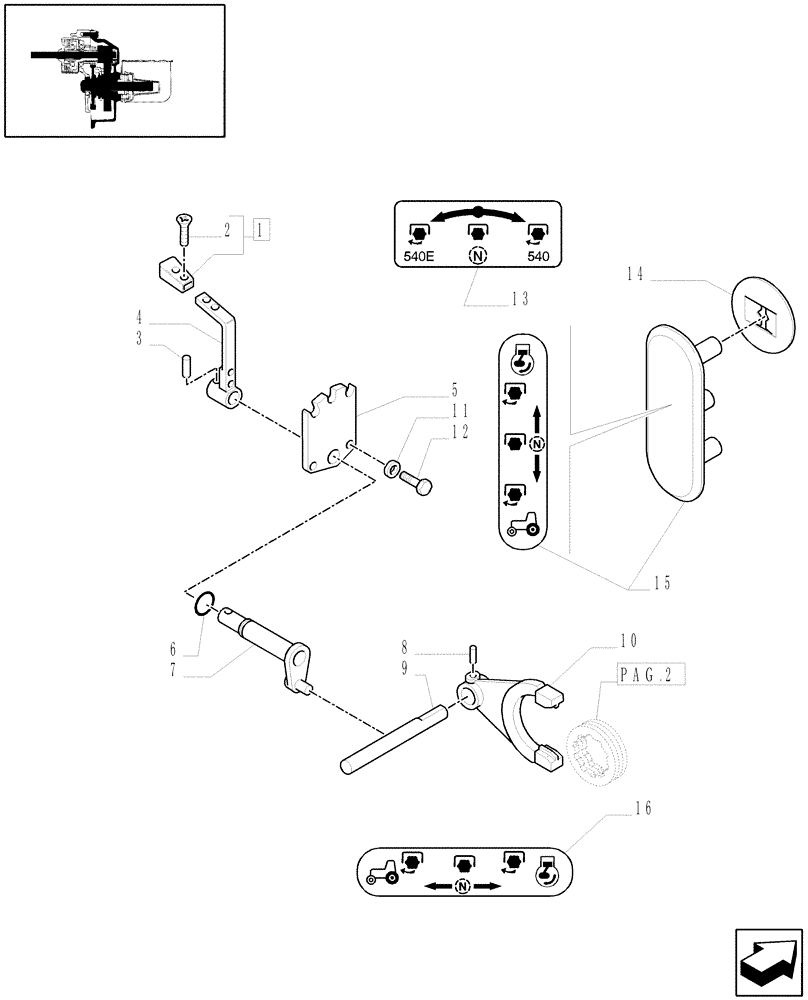

Запчасти Case IH JX1095N (1.80.1/06[04]) - (VAR.020) POWER TAKE-OFF 540/540E RPM WITH GROUND SPEED FOR ADIC- LEVER AND FORK (07) - HYDRAULIC SYSTEM

1

5131161

HANDLE GRIP

1шт.

2

15919407

SCREW,Cross Flat Hd, M6.3 x 16

2шт.

3

14601270

ROLL PIN,M5 x 28, Slotted

1шт.

4

5177567

LEVER

Assy.

1шт.

5

5177569

PLATE

TOOTHED SECTOR

1шт.

6

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

7

5173465

LEVER

Assy.

1шт.

8

14604070

LOCK PIN,M6 x 28, Slotted

1шт.

9

5176335

ROD,16mm OD x 116mm L

1шт.

10

5173448

YOKE,16mm Hole Dia

1шт.

11

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

DIA=10

2шт.

12

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

13

5179334

DECAL

1шт.

14

14228074

NUT,M5, Push

2шт.

15

5191502

DATA PLAQUE

1шт.

16

5174434

DECAL

1шт.
