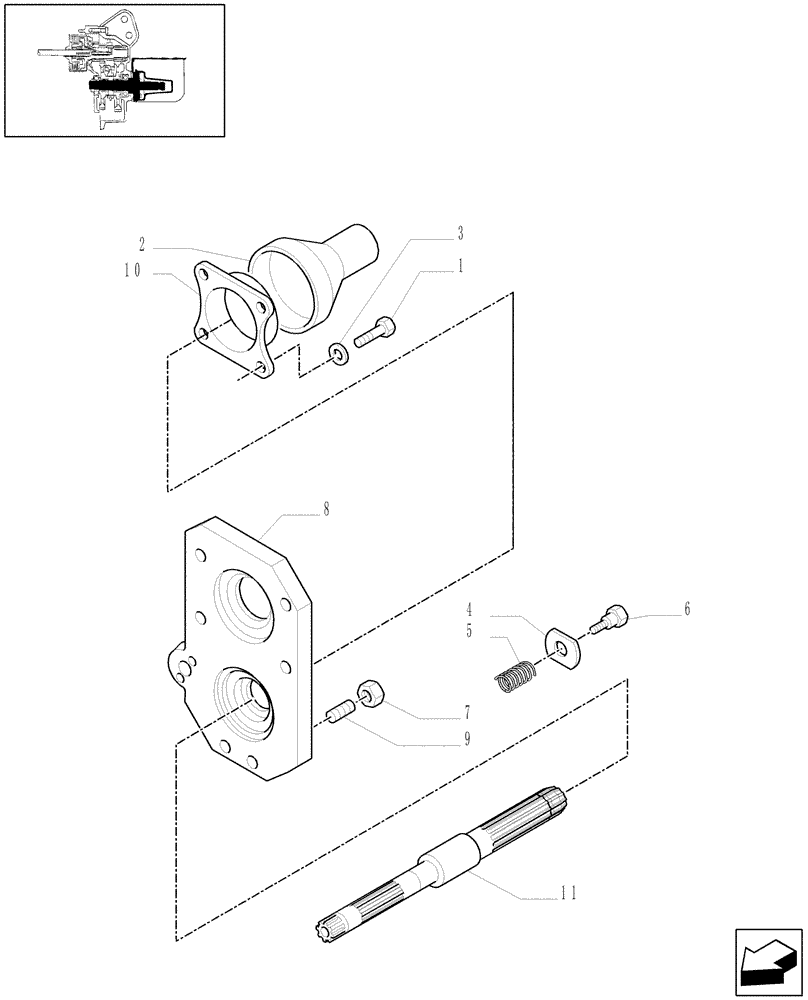

Запчасти Case IH JX1095N (1.80.1/06[03]) - (VAR.020) POWER TAKE-OFF 540/540E RPM WITH GROUND SPEED FOR ADIC - COVER AND SHAFT (07) - HYDRAULIC SYSTEM

1

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

2

5171520

SHIELD,132mm L

1шт.

3

10569374

LOCK WASHER,M8

4шт.

4

47131175

BRAKE DISC,14mm ID x 70mm OD x 4mm Thk

1шт.

5

47132279

SPRING,Compression, 33mm OD x 29mm L

1шт.

6

47130774

PIN,13.5mm OD x 22mm L

1шт.

7

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

6шт.

8

47133661

COVER

1шт.

9

13543624

STUD,M8 x 1.25 x 46mm L, 22 Thd, Cl 8.8

M8 x 16 x 30

6шт.

10

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

11

5180296

SHAFT,M32 x 1.5 x 264.5mm L, 12T

1шт.
