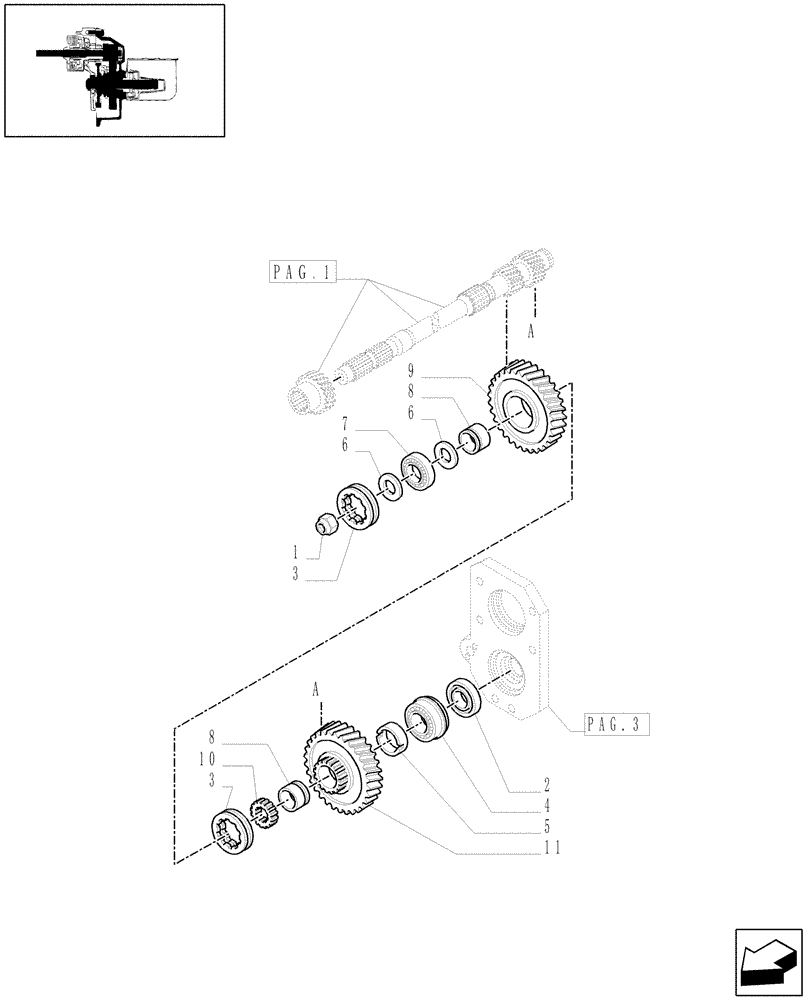

Запчасти Case IH JX1095N (1.80.1/06[02]) - (VAR.020) POWER TAKE-OFF 540/540E RPM WITH GROUND SPEED FOR ADIC - SHAFTS AND GEARS (07) - HYDRAULIC SYSTEM

1

5122985

NUT,Ring, M32, 1.5 Pitch

M28x1.5

1шт.

2

5124606

SEAL,50mm ID x 65mm OD x 8mm Thk

50x65x8

1шт.

3

5130551

SLEEVE,70mm ID x 100mm OD x 20mm L

1шт.

4

5168238

BALL BEARING,40mm ID x 90mm OD x 23mm W

40x90x8

1шт.

5

5124675

THRUST WASHER,38.1mm ID x 56mm OD x 4mm Thk

1шт.

6

5168181

THRUST WASHER,35.1mm ID x 50mm OD x 4mm Thk

2шт.

7

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

35x80x21

1шт.

8

5124668

BUSHING,38mm ID x 46mm OD x 28mm L

2шт.

9

47123681

GEAR

540 RPM

1шт.

10

5130550

PINION,28T / 12T

1шт.

11

5168208

DRIVEN GEAR

750 RPM

1шт.
