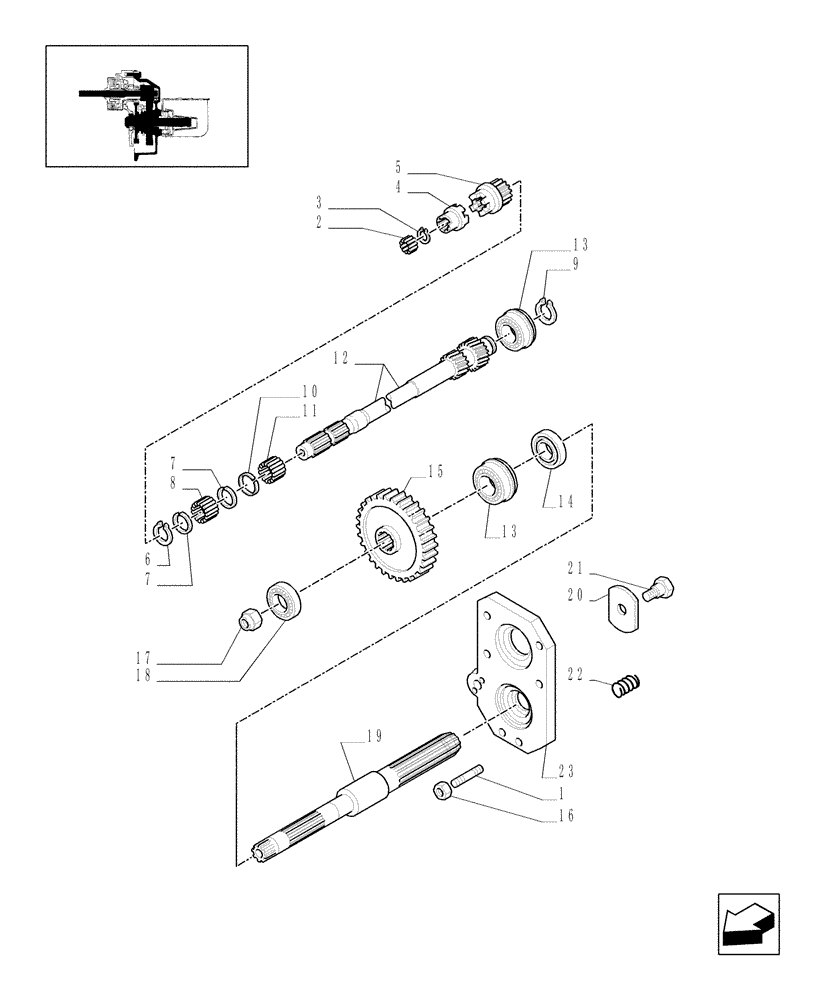

Запчасти Case IH JX1095N (1.80.1/02[01]) - (VAR.807) SYNCHRO MESH GEARED POWER TAKE-OFF (540 RPM) - SHAFTS AND GEARS (07) - HYDRAULIC SYSTEM

1

13543624

STUD,M8 x 1.25 x 46mm L, 22 Thd, Cl 8.8

M8 x 16 x 30

6шт.

2

5103238

NEEDLE BEARING,15mm ID x 21mm OD x 16mm W

15x21x16

1шт.

3

11067276

SNAP RING,M24, Ext

1шт.

4

5172083

COUPLING,10T

1шт.

5

5183818

SPLINED COUPLING,38mm ID x 71mm OD x 48.5mm L

1шт.

6

13398776

SNAP RING,M35, Int

1шт.

7

5173213

SNAP RING,1.5mm Thk, Int

2шт.

8

5173212

NEEDLE BEARING,Needle, 37mm ID x 52mm OD x 22mm W

37x52x22

1шт.

9

11068876

SNAP RING,M40, Ext

1шт.

10

5142178

SNAP RING,1.5mm Thk

1шт.

11

5173210

NEEDLE BEARING,Needle, 43mm ID x 58mm OD x 22mm W

43x58x22

1шт.

12

47123686

SHAFT

540 RPM

1шт.

13

5168238

BALL BEARING,40mm ID x 90mm OD x 23mm W

40x90x23

2шт.

14

5124606

SEAL,50mm ID x 65mm OD x 8mm Thk

50x65x8

1шт.

15

47123682

GEAR,61T

540 RPM

1шт.

16

43362

NUT,M8 x 1.25, Cl 10

6шт.

17

5122985

NUT,Ring, M32, 1.5 Pitch

M32

1шт.

18

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

35x80x21

1шт.

19

5180296

SHAFT,M32 x 1.5 x 264.5mm L, 12T

1шт.

20

47131175

BRAKE DISC,14mm ID x 70mm OD x 4mm Thk

1шт.

21

47130774

PIN,13.5mm OD x 22mm L

1шт.

22

47132279

SPRING,Compression, 33mm OD x 29mm L

1шт.

23

47133661

COVER

1шт.
